The SSME Underwater Pressure-Resistant Inertial Navigation System is a cutting-edge navigation device engineered for deep-sea and underwater applications. It integrates inertial measurement technology with ultra-high pressure resistance, supporting stable operation at a maximum water depth of 6000 meters. It replaces traditional POS MV Elite models, providing precise attitude, azimuth, and position data for underwater equipment, and is widely used in military, marine exploration, and unmanned systems.
• Extreme pressure resistance: Withstands 6000m deep-sea pressure, suitable for deep-sea resource exploration and underwater operations.
• Modular design: Facilitates later maintenance and component replacement, reducing downtime.
• Multi-protocol compatibility: Supports RS-422, RS-232, and LAN communication, adapting to different underwater equipment systems.
• Wide angular velocity measurement range (±600deg/s), capturing rapid attitude changes of underwater vehicles (e.g., unmanned submarines).
• Selectable data refresh rate (5-1000Hz), meeting high-speed response needs of missile guidance or multi-beam sonar systems.
• Recognizes international standard NMEA 0183 protocol, ensuring seamless integration with GPS and marine navigation software.
• Low power consumption (15W), extending battery life of unmanned underwater vehicles (UUVs).

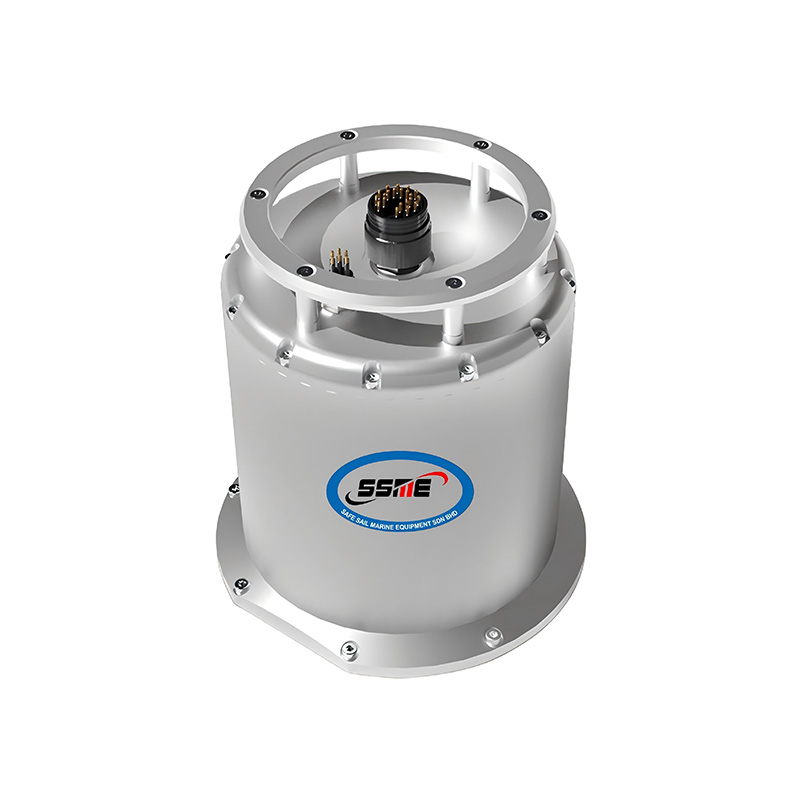

• Ultra-small size (Ф214mm × 167mm), easy to embed in compact underwater equipment (e.g., mini-submarines, underwater robots).
• Independent power supply and wiring design, avoiding interference from other equipment and enhancing system stability.
For oceanographic research ships or deep-sea exploration platforms, the system provides real-time attitude and position data for multi-beam bathymeters and sediment samplers. It ensures accurate mapping of seabeds and precise collection of mineral resources (e.g., polymetallic nodules) at 6000m depth.
In mid-range missile guidance systems, it offers stable azimuth references to improve strike accuracy. For unmanned ships or UUVs, it supports autonomous navigation and control in remote marine areas (e.g., anti-submarine patrols, coastal defense), reducing reliance on satellite signals.
Parameter | Value |
Maximum Water Depth | 6000 meters |
Power Consumption | 15W |
Communication Interfaces | RS-422, RS-232, LAN |
Data Refresh Rate | 5-1000Hz (selectable) |
Compatibility | Replaces POS MV Elite |
Reliability | Long lifespan, high stability |
• Pressure-resistant casing: Made of titanium alloy, ensuring no deformation or water leakage under high pressure.
• Internal components: Shock-absorbing design protects inertial sensors from underwater turbulence or impact.
• Connection ports: Waterproof connectors (IP68-rated) for secure data transmission and power supply.
Tailors navigation algorithms and communication protocols according to client needs (e.g., adjusting data output formats for specific UUV models).
• Provides on-site maintenance for large-scale equipment (e.g., offshore platforms) to avoid transportation risks.
• Offers free firmware upgrades within 2 years, adding new functions like enhanced anti-interference performance.
Conducts online or on-site training for client engineers, covering system installation, calibration, and troubleshooting.
