Place of Origin: | China |
Brand Name: | ANHANG |
Certification: | CCS |
Model Number: | AH-JL-01 |
Protection Level: | IP67 |
Size: | 115mm×42mm×22mm (L×W×H） |
Weight: | 170g |
Application： | Marine Lifesaving |
Printing | customerized Printing, OEM services |

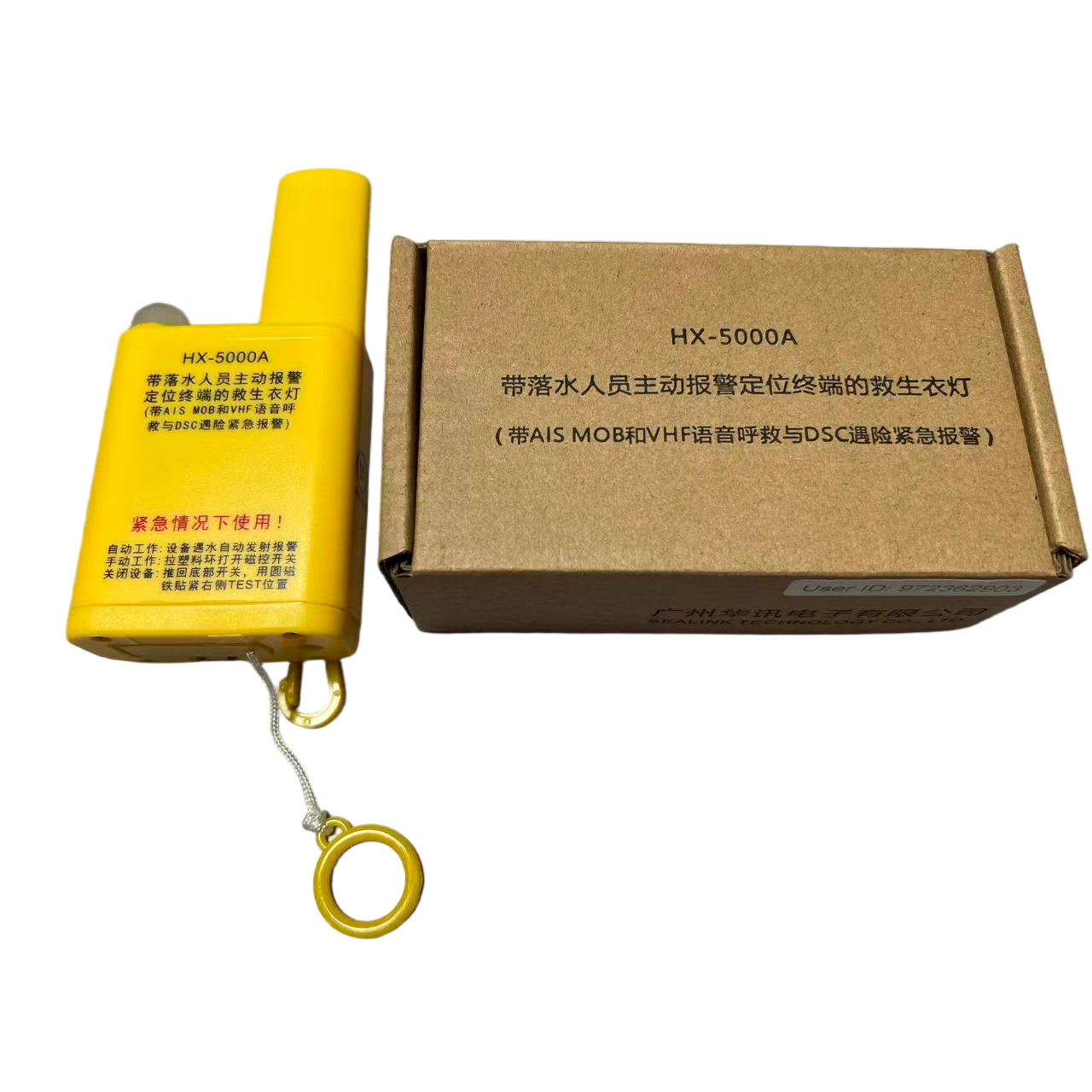

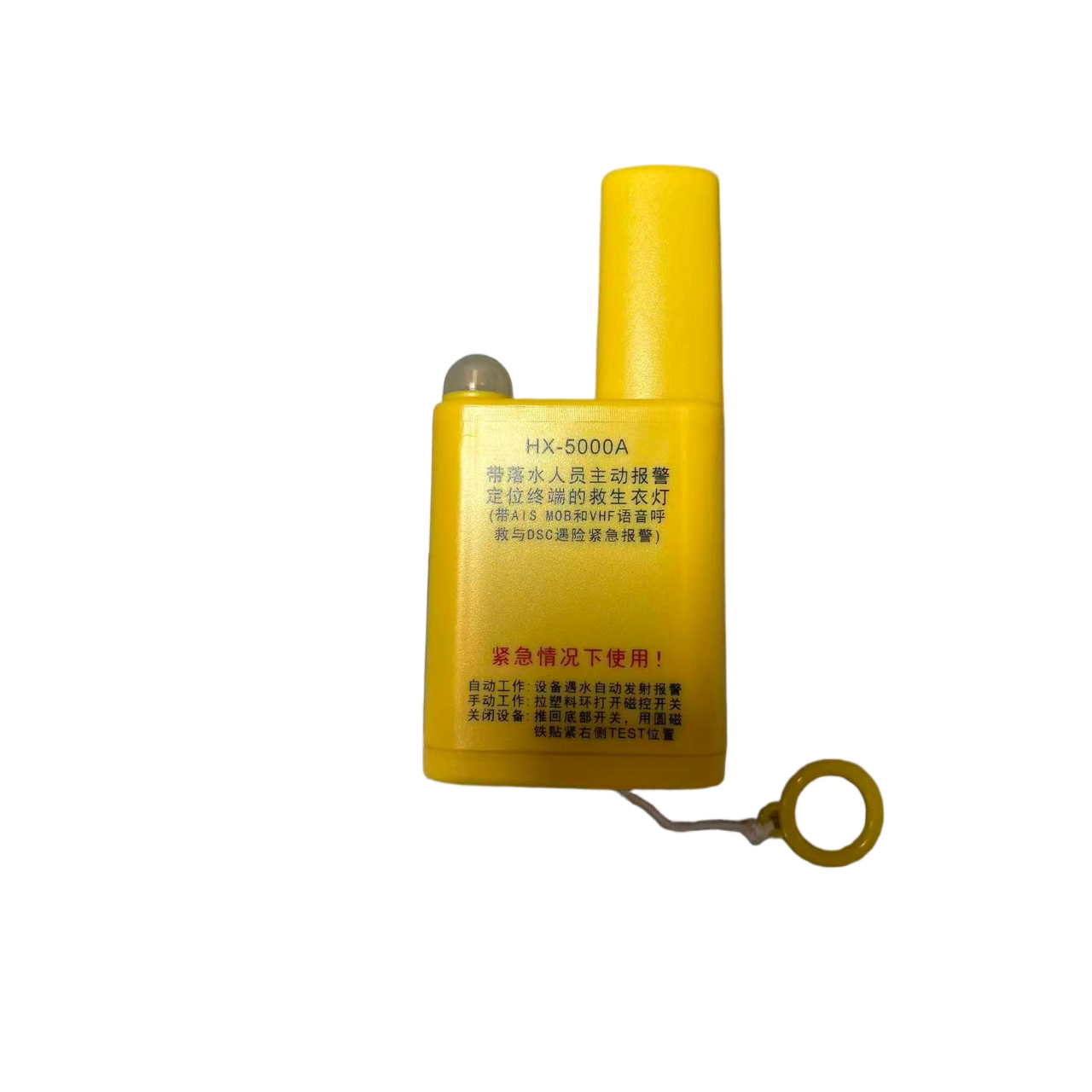

The HX-5000A AIS Positioning Life Jacket Light is an advanced portable emergency device integrating AIS MOB (Man Overboard), VHF voice communication, and DSC distress alarm functions. Developed for high-risk maritime scenarios, it can be installed on life jackets or carried personally, with an effective search and rescue range of over 2 nautical miles. Key selling points: multi-channel emergency communication, automatic water activation, 48+ hours of continuous work, and 5-year service life—providing all-round safety guarantees for distressed personnel.
• Multi-Functional Emergency Communication: Supports AIS MOB position transmission, VHF voice communication (for direct contact with rescue teams), and DSC distress alarm (sends standardized distress signals), enhancing rescue coordination.
• Dual Activation Modes: Automatically activates when in contact with water (no manual operation); manual activation by pulling the plastic ring to open the magnetic switch—suitable for unconscious or urgent situations.
• Extended Working & Signal Range: Built-in low-power GNSS and AIS modules, supporting 48+ hours of continuous work; AIS signals cover over 2 nautical miles, connecting to ships, aircraft, and shore base stations.
• Reusable & Battery Replaceable: Disposable lithium-manganese batteries can be replaced, allowing the device to be reused after maintenance (reducing long-term costs).
• Power & Function Check: Press the button 3 times (when activated) to check battery level via flash frequency; test mode (5-button press) verifies all functions (AIS, VHF, DSC).
• Ocean-Going Container Ships & LNG Carriers: Protects crew members working in open seas; AIS MOB and DSC alarms ensure rapid response from the ship or nearby vessels.
• Cold-Water Offshore Platforms: Suitable for workers in low-temperature sea areas (e.g., North Sea); the device works normally in -1℃ to +30℃ water, with no performance loss.
• Flood & Inland Rescue: Aids rescue teams in river or lake floods; VHF voice communication allows direct contact with rescue boats, even in areas with poor visibility.
• Aviation Maritime Rescue: Equipped in aircraft life jackets; if the aircraft ditches at sea, the device’s AIS signal guides maritime rescue teams to the crash site.
• Dimensions: 115mm×42mm×22mm (L×W×H)—compact, lightweight (170g), no burden on movement.
• Protection Level: IP67 (dustproof, waterproof for 1m depth/30 minutes)—suitable for long-term immersion in sea water.
• Brightness & Flash Frequency: ≥0.75cd light intensity, 50–70 flashes per minute—visible at 1+ nautical miles at night.
• Certifications: SOLAS 74/78, MSC 81(70), MSC 226(82), CCS/EC (MED)—compliant with global maritime and aviation safety standards.
• AIS MOB Module: Sends real-time position data (latitude/longitude) to AIS receivers, marking the overboard location.
• VHF Transceiver: Operates on marine emergency channels (e.g., Channel 16) for voice communication, enabling two-way interaction.
• DSC Module: Sends digital distress signals (including position and identity) to DSC-equipped vessels, triggering automatic alerts.
• Magnetic Switch: Manual activation via plastic ring; closing via pushing back the bottom switch and attaching a round magnet to the TEST position—preventing accidental shutdown.
• Battery Replacement & Testing: Professional battery replacement service; full function testing (AIS, VHF, DSC) after replacement to ensure reliability.
• Communication Calibration: Annual VHF/DSC channel calibration to comply with local maritime communication regulations (e.g., IMO, FCC).
• Emergency Training: Provides on-site training for crew members on device activation, function checks, and emergency use.
• Global After-Sales Network: Cooperates with local maritime service providers in Southeast Asia, Europe, and the Middle East to offer timely repair and support.
