Product Category: | AIS Automatic Identification System for Ships |
Brand Name: | SSME |
Country of Origin: | Malaysia/China |

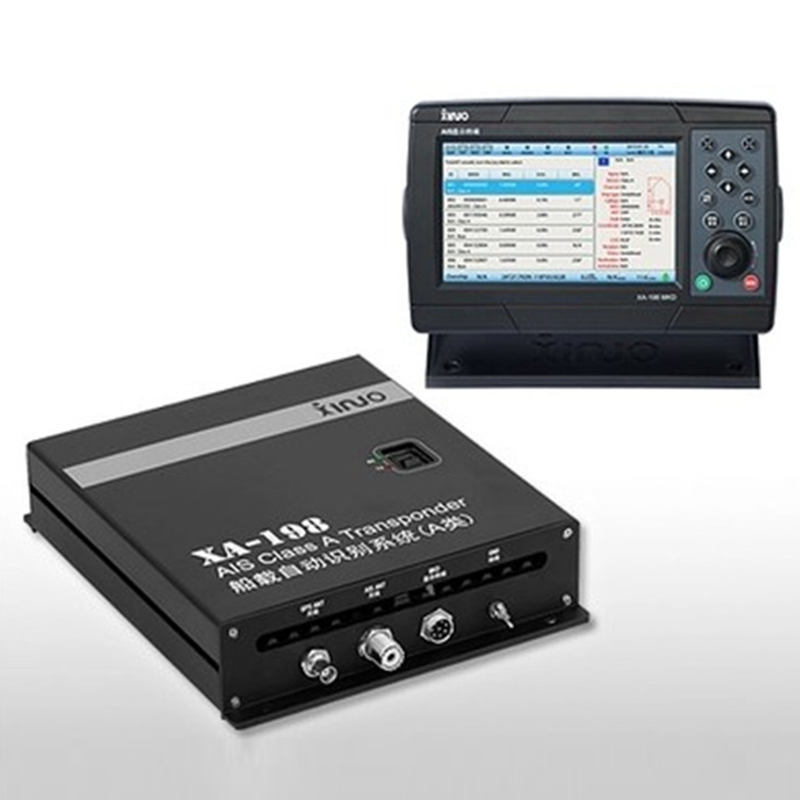

Model Number: | SSME-TX-02(XA-198) |
Function: | Supports dual-mode high-precision positioning with BDS and GPS. It is equipped with complete Class A AIS functions. It can carry out classification and team management of ships. |
Equipment material： | Simple operation, provides real-time collision avoidance information, pure aluminum design, corrosion-resistant |
Accessories: | Power supply, antenna, feeder; |
Printing | Customized Printing, OEM services |
Processing unit TS/RX frequency:
156.025MHz-162.025MHz
RX1 CH87B(161.975MHz)
RX2 CH88B(162.025MHz)
Output power: 11W/12.5W selectable
DSC receiver CH70:156.525MHz, G2B:1200bps
Channel bandwidth: 25KHz/12.5KHz
Display unit
Type: Color TEF LCD display
Screen size: 7 inches
Screen resolution: 800*480 pixels (WVGA)
GPS receiver
Receiving channels: 12 channels
Receiving frequency: L1(1575.42MHz)
Interface
Sensor COM1-4 IEC61162-1/61162-2
Input: the VSD, SSD, ABM, BBM, ACA, ACK, AIR, DTM, GBS, GGA, GLL, GNS, HDT, LRF, LRI, OSD, RMC, ROT, VBM, vacations
Output: VDM, VDO, ABK, ACA, ACR, TXT, LR1, the LR2 and LR3, LRF, LRI
Environment
Waterproof rating: IP66(display unit)
Power supply: DC 12-36V
Operating temperature: -15°C to +55°C
Applications
The application prospects of the Automatic Identification System (AIS) are very broad, and it is widely used in various types of ships and port terminals The AIS system, through the real-time exchange of dynamic and static information of ships, helps to improve the safety of maritime traffic. The AIS system will focus on improving its data processing capability and real-time performance to support more complex maritime traffic management needs. The AIS system will focus more on integration with other navigation and communication systems provide comprehensive maritime information services. This integration may include the combination with satellite navigation systems, electronic chart display and information systems (ECDIS), and other ship sensors.
Certification
CCS
Competitive Advantage
Passed the type approval of China Classification Society (CCS).
7-inch display unit + host design, supporting multiple installation methods such as countertop and embedded.
Support BDS and GPS dual-mode high-precision positioning.
The AIS radar screen visually displays the distribution of surrounding ships and provides various statistical data for reference.
Intelligent encounter alarm mechanism, accurately reminding of possible encounter information, avoiding outdated and invalid alarms.
It is equipped with A complete Class A AIS function and can intelligently switch the transmission power according to the navigation status of the ship.
Record historical destination information for users to quickly select and invoke.
It can manage ships in teams, facilitating supervision.
Advanced intelligent voice technology enables intelligent broadcasting of operation content, alarm content, etc.
Customer case study
The products are sold far and wide to Southeast Asia, Europe, the Middle East, Latin America and other regions, and have received high praise from customers.
