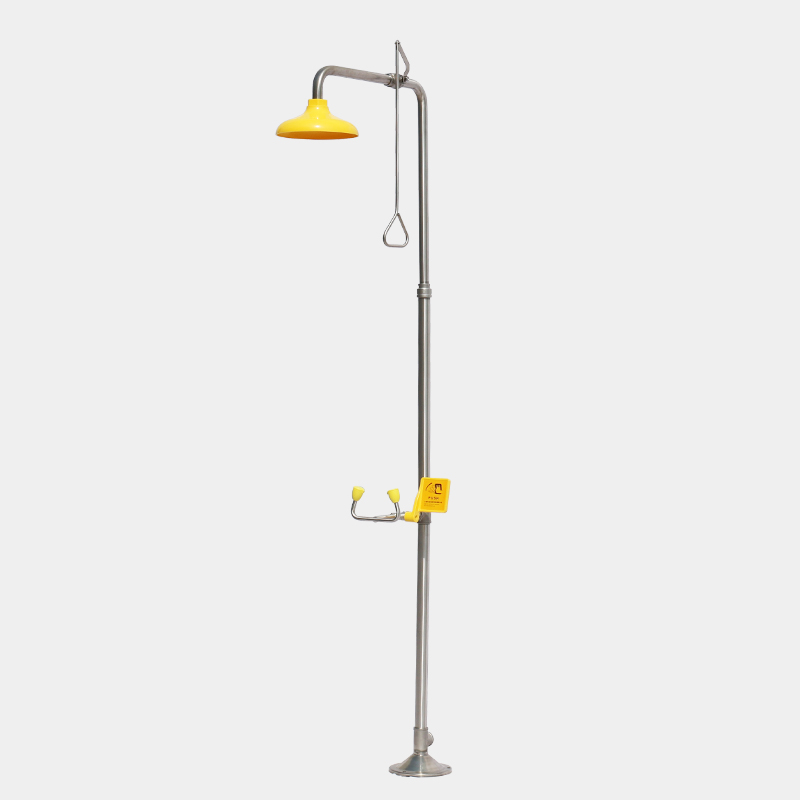

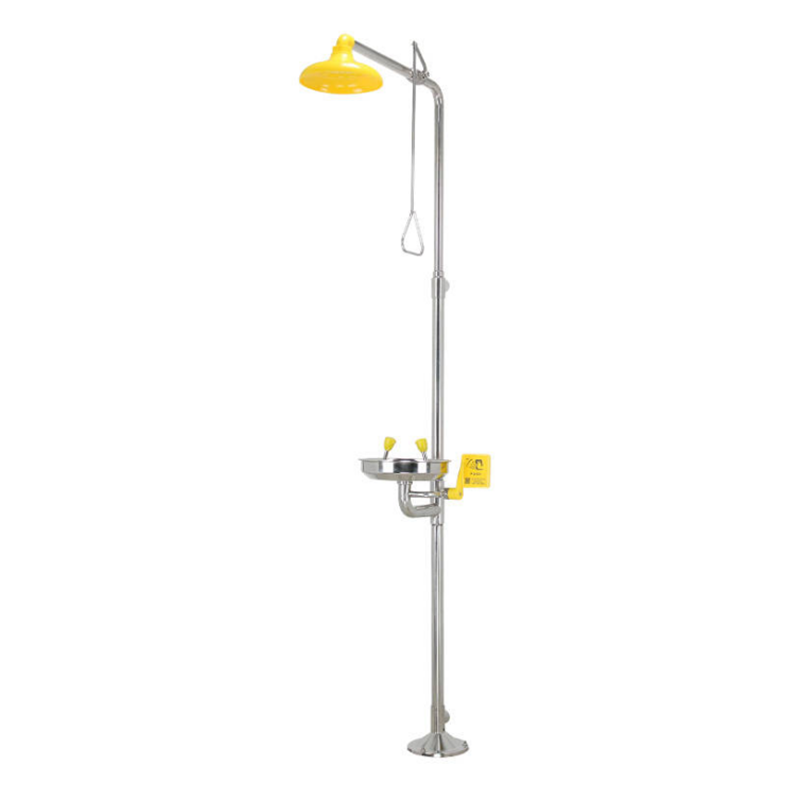

Combined Eyewash Station

• Nominal pressure: 1.0 Mpa

• Working pressure: 0.2 - 0.4 Mpa

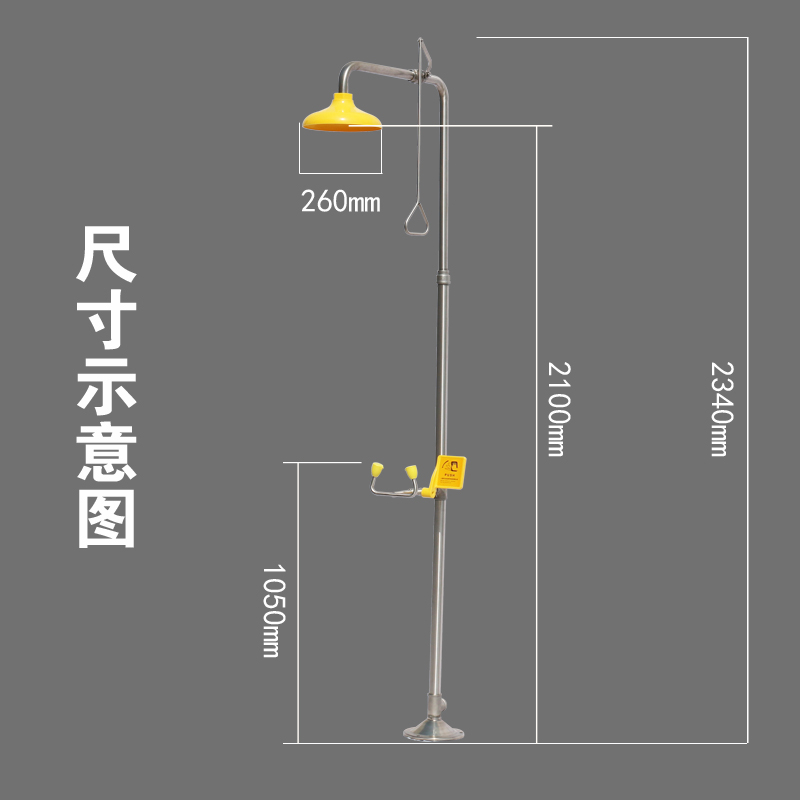

• Height of eyewash nozzle: 1000 MM

• Height of shower nozzle: 2100 MM

• Eyewash flow rate: ≥ 11.4 L/min

• Shower flow rate: ≥ 75.7 L/min

• Inlet size: 1-1/4 internal thread, height 1560 MM

• Outlet size: 1-1/4 internal thread, height 98 MM

• Gross weight: 14 KG

• Net weight: 13 KG

• Packaging size: L*W*H = 750*300*250 mm

• Product size: L*W*H = 800*400*2340 mm

• Operating medium: Conforms to hygiene standards and normal temperature domestic water

• Main material: 304 stainless steel

Applications

It is widely applied in units, industries or fields such as nuclear energy, power stations, pharmaceuticals, medical care, chemical engineering, petroleum, shipping, electronics, metallurgy, dyeing and printing, education and scientific research.

Certification

CE Certificate

Competitive Advantage

(1) Corrosion-resistant material: The main body is made of 304 stainless steel / engineering plastic (acid and alkali resistant model), resistant to corrosion from hydrochloric acid, sulfuric acid, organic solvents, etc. It will not rust or leak even after long-term use.

(2) Convenient start-up design: Eye-washing / showering are equipped with pull-rod type / independent foot-operated (optional) switches respectively. There is no need for manual contact. Even when wearing gloves or when hands are injured, it can be triggered easily to avoid secondary pollution.

(3) Easy maintenance structure: An internal water inlet filter is installed to prevent impurities from blocking the water outlet. The eye-washing cup and shower head can be disassembled for cleaning. Regular checks only require checking the water pressure and the flexibility of the switch, which can reduce maintenance costs.

Customer case study

The products are sold far and wide to Southeast Asia, Europe, the Middle East, Latin America and other regions, and have received high praise from customers.
