| Availability: | |
|---|---|
| Quantity: | |
Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Certification: | Detection Report |
Model Number: | SSME-HB-04 |
The suction depth of the equipment： | 5M / 8.5M |
The flow of the pump: | 5m2/h-15m2/h |
Types of pumps: | Self-priming crusher pump / rotor pump |
Application: | various ship terminals |
Size: | 1.5m*1.2m*1.3m |
Printing | customerized Printing, OEM services |

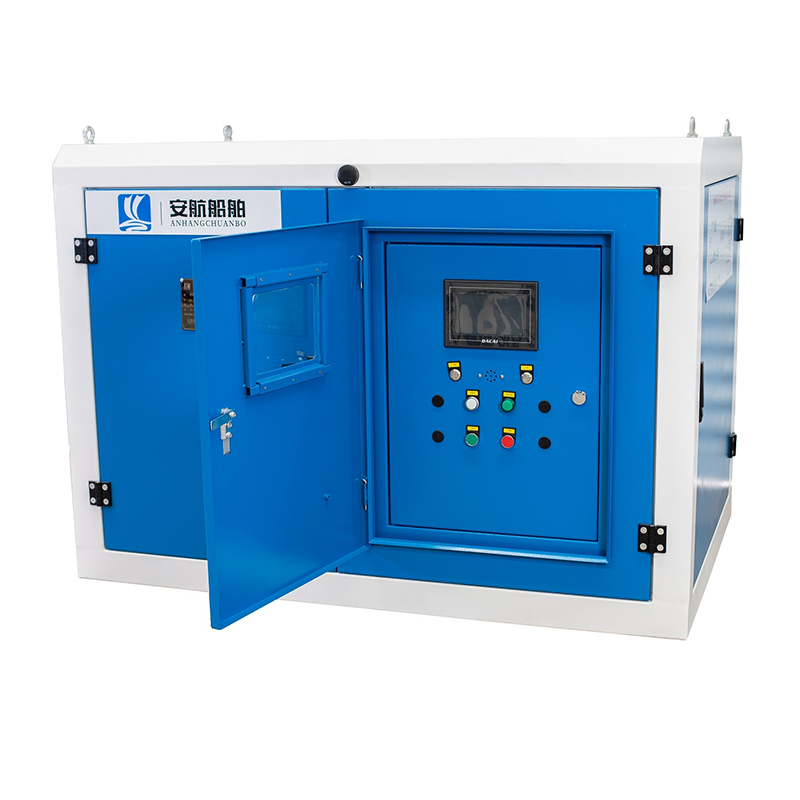

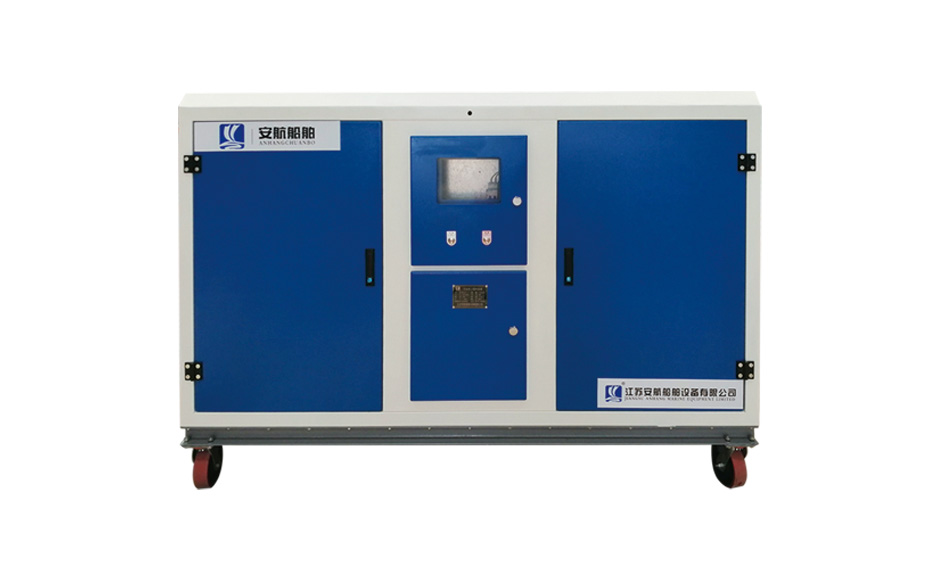

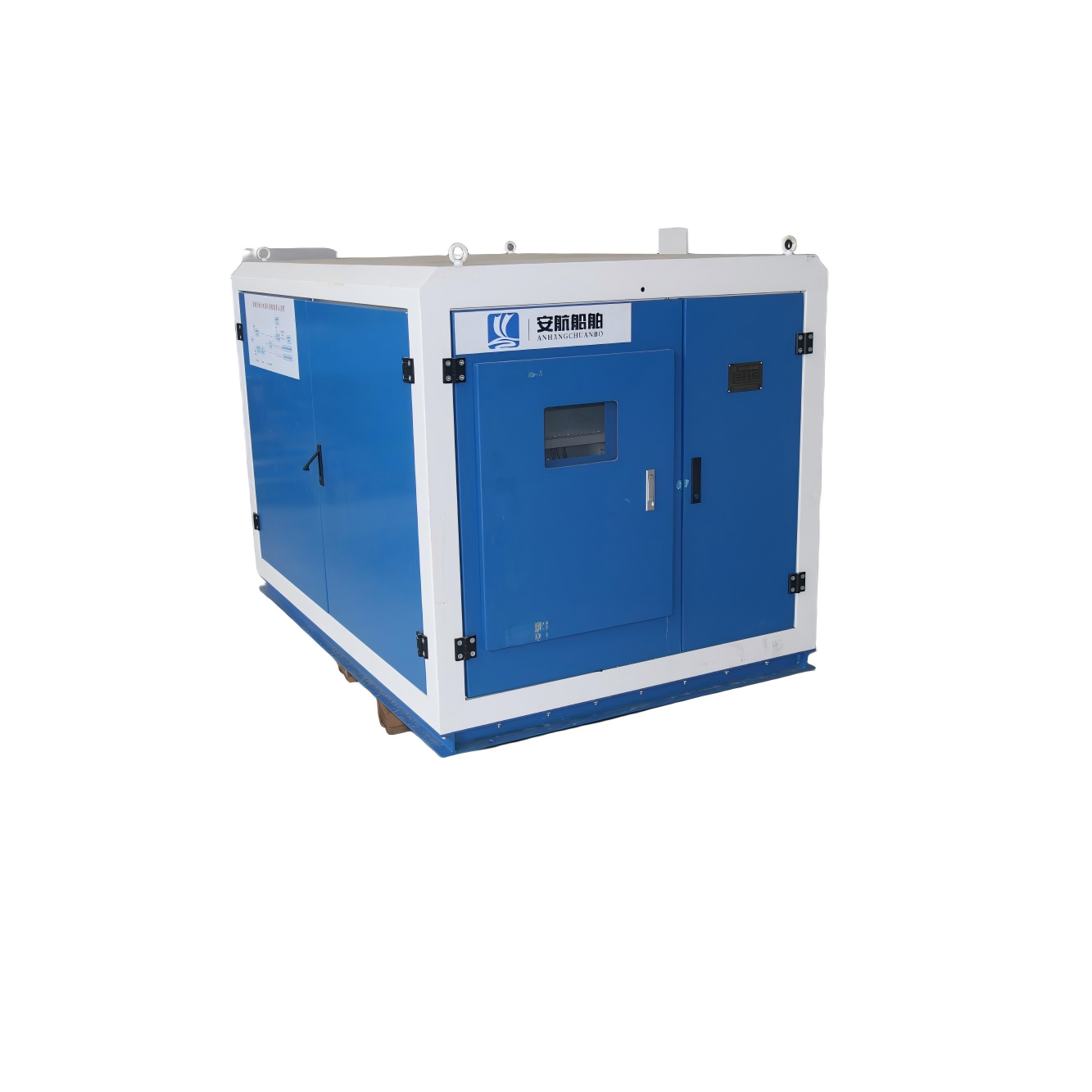

This collection device can be used on various types of ships to collect raw sewage, and additionally has the functions of flushing, crushing, and discharging sewage overboard.

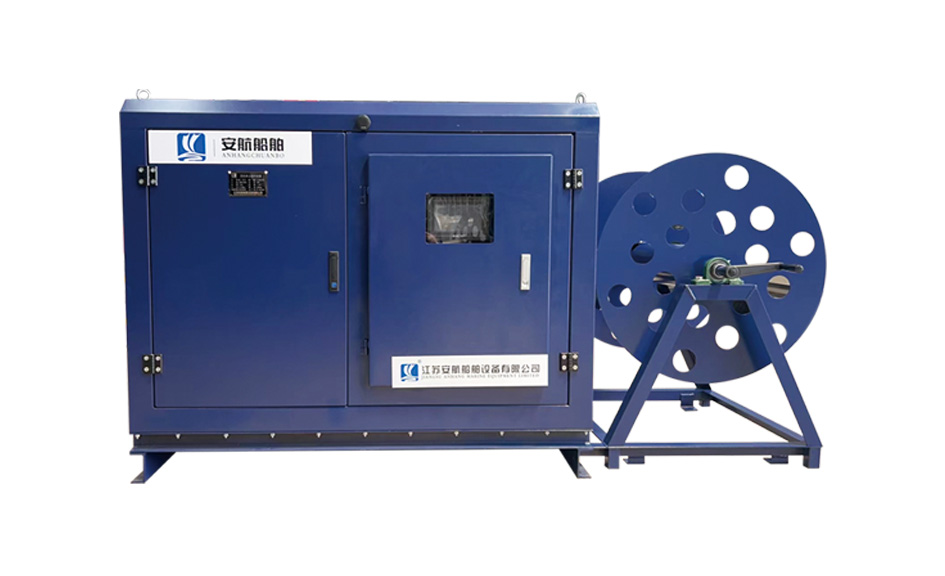

The collection device is composed of components such as a base, an outer casing, a crushing self-priming pump, a VIS system, valves, an electromagnetic flowmeter, a control box, and a hysteresis hose reel.
Raw sewage enters the device through the sewage inlet pipeline and is discharged from the device outlet to the urban pipe network.
Applications
Applicable to sewage reception at inland river ports, docks, etc.
Certification
Design Guidelines for Onshore Reception Facilities of Ship Water Pollutants at Inland River Ports (JTS/T 175-2019)
Competitive Advantage
The reception device applies Internet of Things (IoT) technology and remote flow monitoring technology, and highly integrates major equipment such as high-power self-priming sewage pumps, flowmeters, QR code information systems, integrated outer casings, and mobile flatbed carts. Users can realize the onshore collection of ship sewage and obtain real-time sewage discharge data through simple operations.
Customer case study
The products are sold to various ports and terminals nationwide/worldwide and are highly praised by customers.
