| Availability: | |
|---|---|
| Quantity: | |
Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Certification: | CCS |
Model Number: | SSME-TX-05(VEP8、VEP8A) |
Function: | Marine safety search and rescue system |
Standard: | IMO ReS.MSC.471(101):2019, Performance standards for float-free emergency position indicating radio beacons (EPIRBs) operating on 406 MHz |
Application: | Production Safety |
Printing | Customized Printing, OEM services |
1. Main technical indicators
Battery pack: Lithium battery, 5-year warranty
Running time: >48h@-20℃
Strobe light: 24 times per minute (minimum brightness 1.0cd)
Size: Φ140/H231.5mm (excluding antenna)
Weight: <1.7 kg
Operating temperature range: -20℃ to +55℃
2. 406MHz satellite transmitter
Transmission frequency: 406.040MHz±1kHz
Transmission power: 5W (37dBm)±2dB
Phase modulation: Peak value is 1.1rad±0.1rad
Encoding method: Two-phase L encoding
3. 121.5MHz locating transmitter
Transmission frequency: 121.5MHz±50ppm
Transmission power: 17dBm±3dB
Modulation method: A3X
Launch duty cycle: 97% (continuous launches)
4. AIS search and rescue transmitter
Transmission frequency: 161.975MHz, 162.025MHz
Transmission power: 1W (30dBm) ± 2dB
Modulation type: GMSK, FM, 9600bps
Launch duration: ≤ 26.6ms
5. Satellite positioning receiver
Receiving channels: 50 channels, L1 frequency points
Receiving antenna: Built-in ceramic sheet
System positioning accuracy: <100m
Applications
It is widely applied in ships, port terminals, anchorages and water service areas.
Certification
CCS、DNV
Competitive Advantage

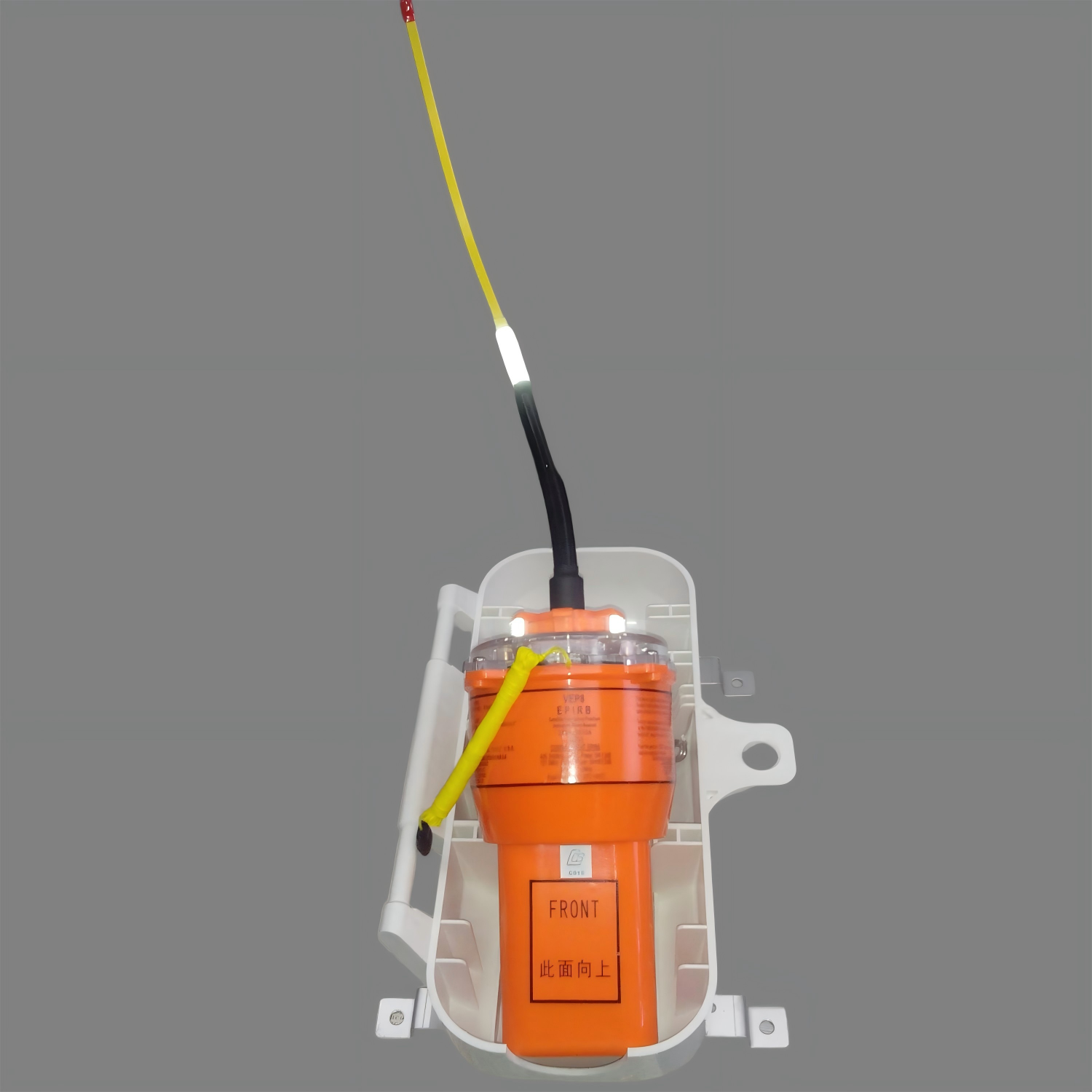

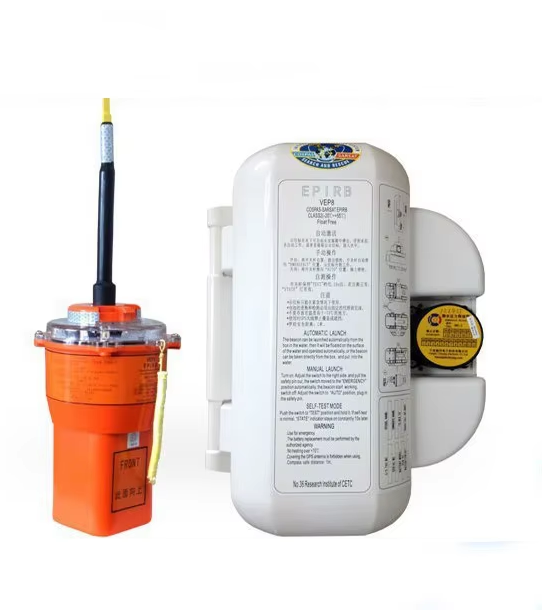

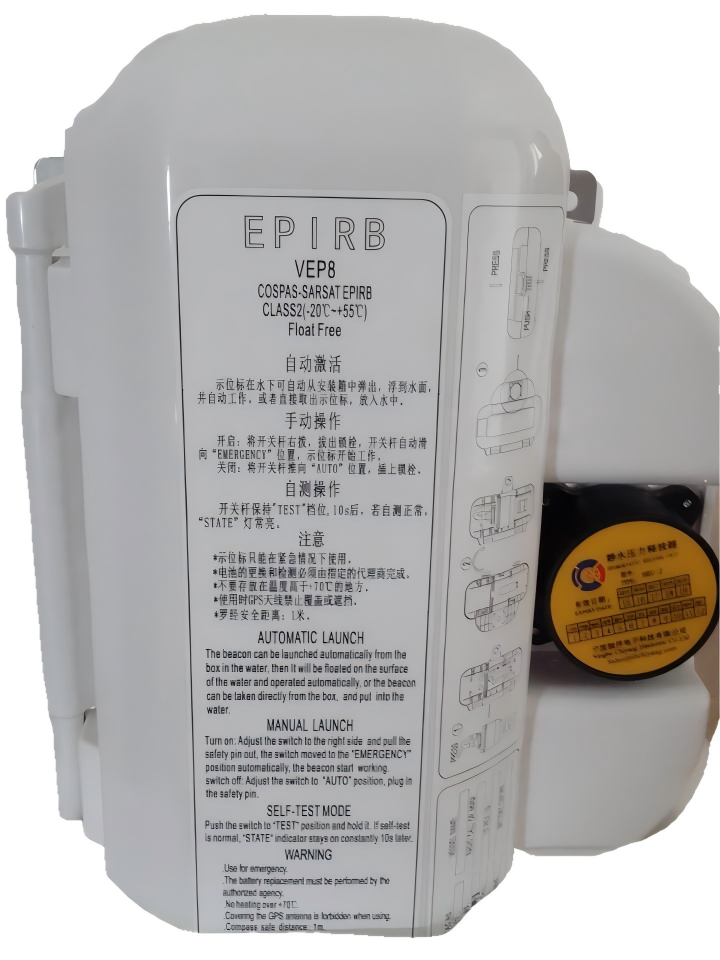

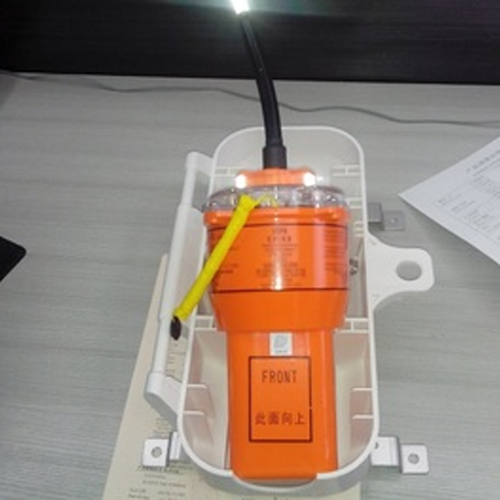

The VEP8A satellite emergency radio position indicator is designed in accordance with the latest international standards, supports AIS search and rescue signal transmission, and is equipped with built-in satellite positioning, achieving higher positioning accuracy and shorter positioning time. It is suitable for use on various domestic and international ships.
Customer case study
The products are sold far and wide to Southeast Asia, Europe, the Middle East, Latin America and other regions, and have received high praise from customers.
