| Availability: | |
|---|---|
| Quantity: | |
Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Certification: | CCS/EC(MED) |
Model Number: | SSME-XF-06(SSME-2/SSME/4) |
Number of Cylinders for Filling: | 2 cylinders or 4 cylinders |
Size: | 630mm * 600mm * 1410mm OR 1150mm*680mm*1410mm |
Working Pressure: | 40MPa (400BAR) |
Accessories: | Fire rescue |
Printing | customerized Printing, OEM services |

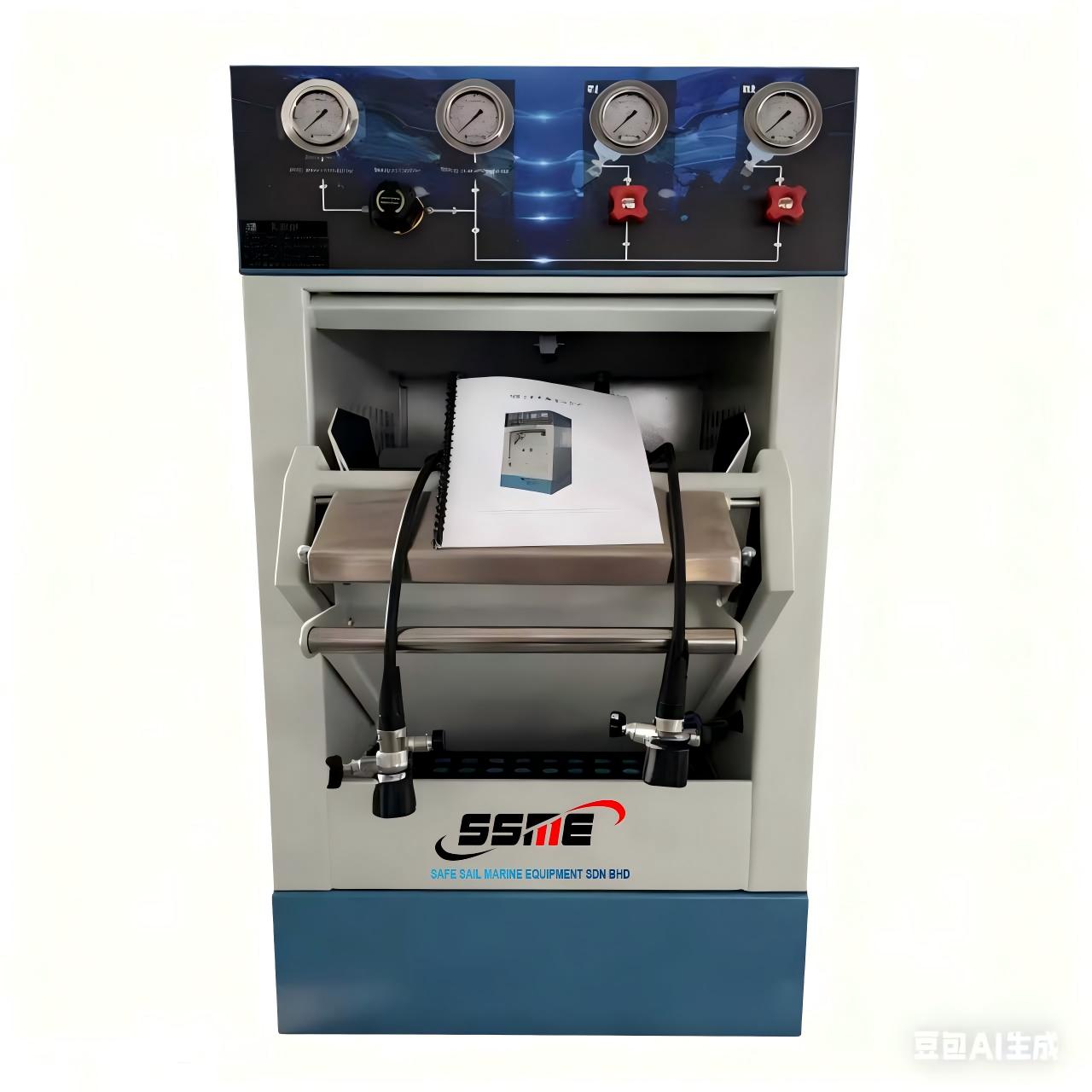

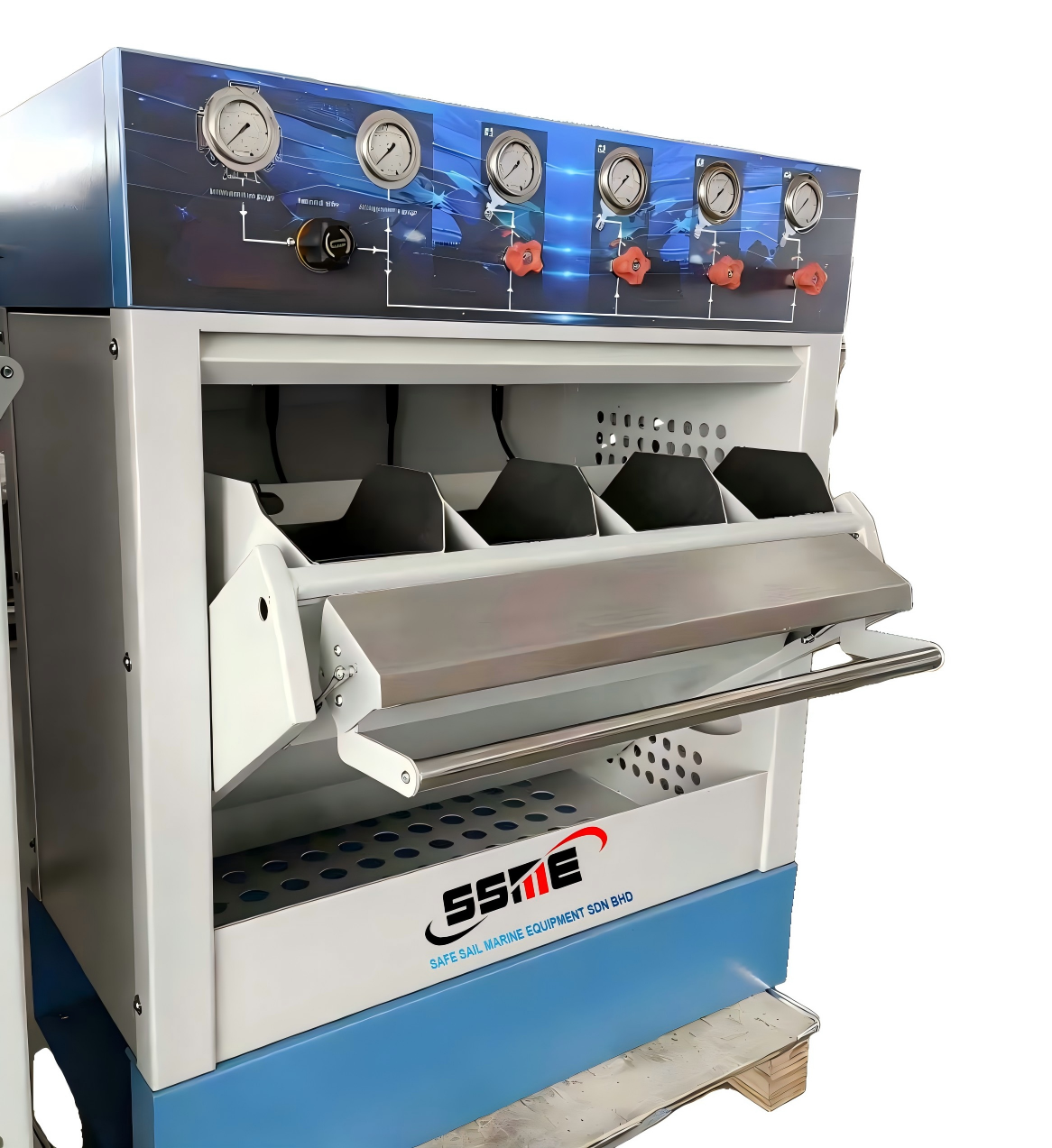

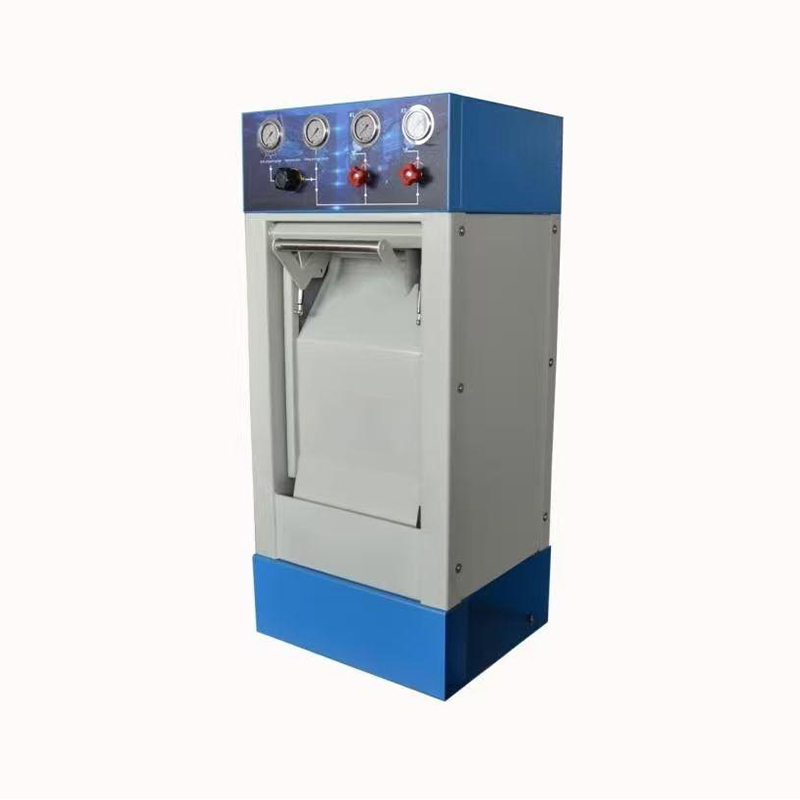

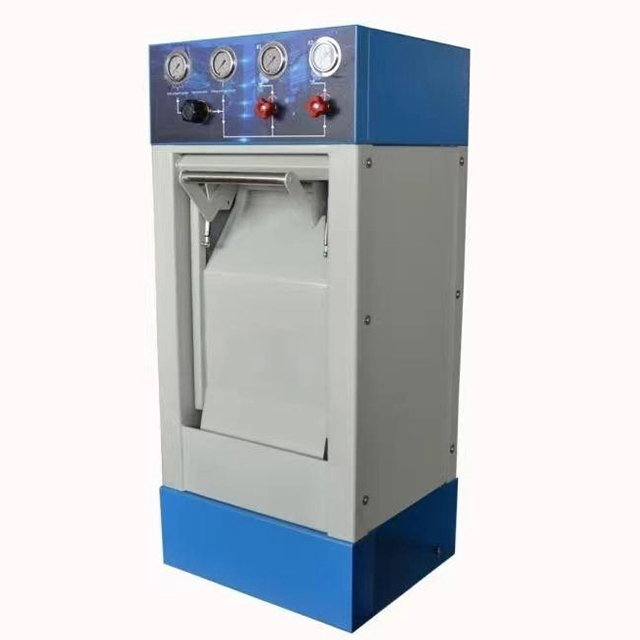

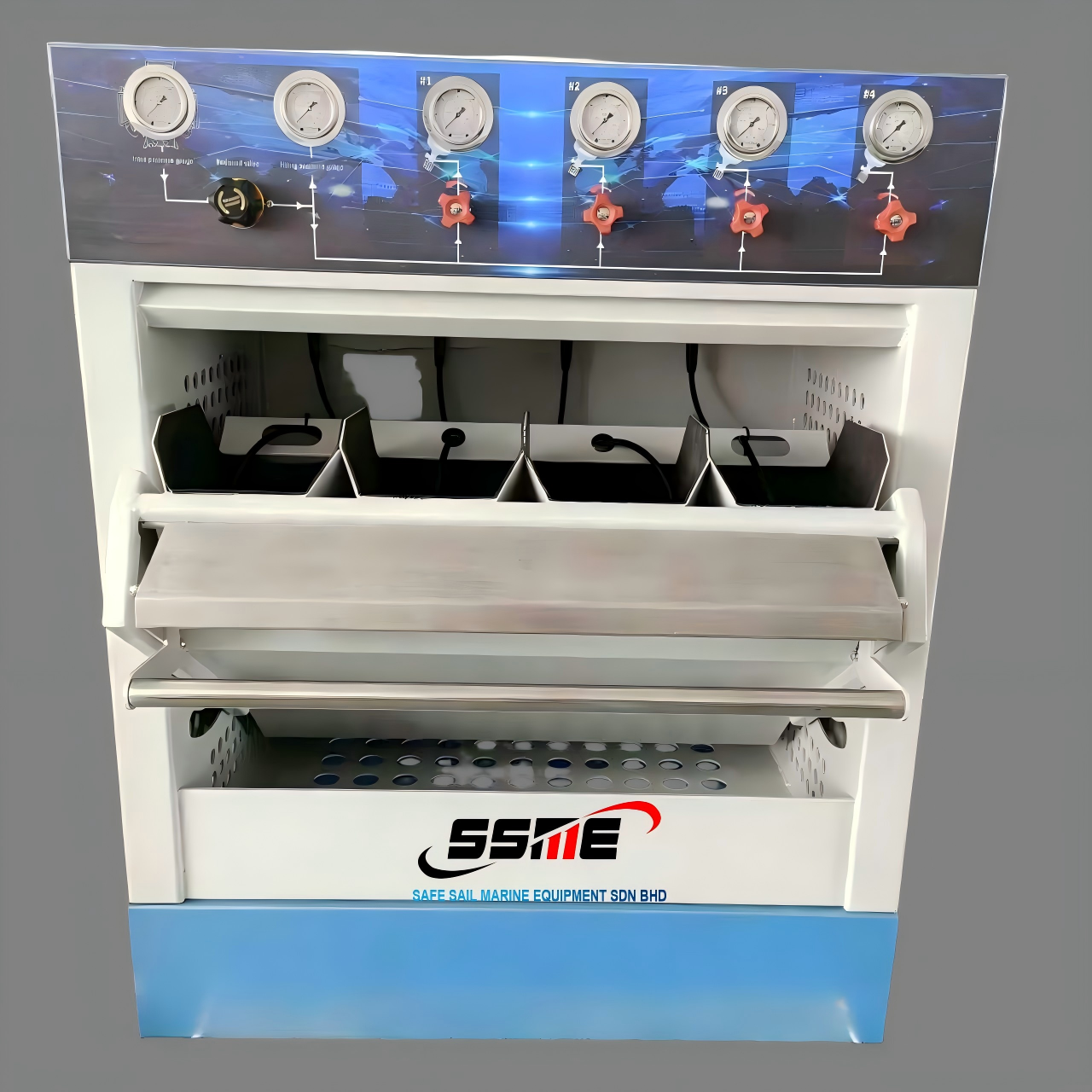

The explosion-proof cabinet for inflation cylinders is designed to ensure the safety of cylinder filling personnel. During the cylinder inflation process, defective cylinders with potential hazards cannot always be detected in a timely manner, and cylinders may also experience severe heat generation. The explosion-proof cabinet can eliminate the risk of potential cylinder explosion during inflation.
Number of Cylinders for Filling: 2 cylinders or 4 cylinders
Applicable Cylinders: 6-9L carbon fiber cylinders or steel cylinders
Working Pressure: 40MPa (400BAR)
Dimensions (Length * Width * Height): 630mm * 600mm * 1410mm OR 1150MM*680MM*1410MM
Weight: 245kg/350kg
Applications
It is mainly used for explosion prevention during the inflation of high-pressure cylinders by units such as armed police fire departments and enterprise fire departments.
Certification
It complies with theTechnical Outline for Explosion-Proof Inflation Cabinets.
Competitive Advantage
High-strength steel plates are processed by laser cutting, featuring high precision, reliable operation and flexibility.
Supported by a rotating shaft nitrogen spring, the door can be opened and closed effortlessly and lightly.
It is equipped with double-layer high-strength steel armor, and the inner-layer steel armor is provided with air flow guide holes. These holes guide the high-speed air flow generated when the cylinder ruptures, effectively preventing the cylinder fragments from injuring people.
For the explosion-proof inflation cabinet, when the cabinet door is open, the cylinder will not be inflated even if the inflation valve is opened. Only when the cabinet door is closed can the cylinder be inflated, which prevents misoperation.
Customer case study
The products are exported to shipowners and shipyards in South Korea, Southeast Asia, Europe, the Middle East, and other regions, and have received high praise from customers.
