| Availability: | |
|---|---|
| Quantity: | |
Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Certification: | CCS |
Model Number: | SSME-TX-03 |
North-seeking accuracy (deg): | 0.1/0.5/0.75 |
Size: | 145*121.5*125mm |
Application: | Ship navigation; |

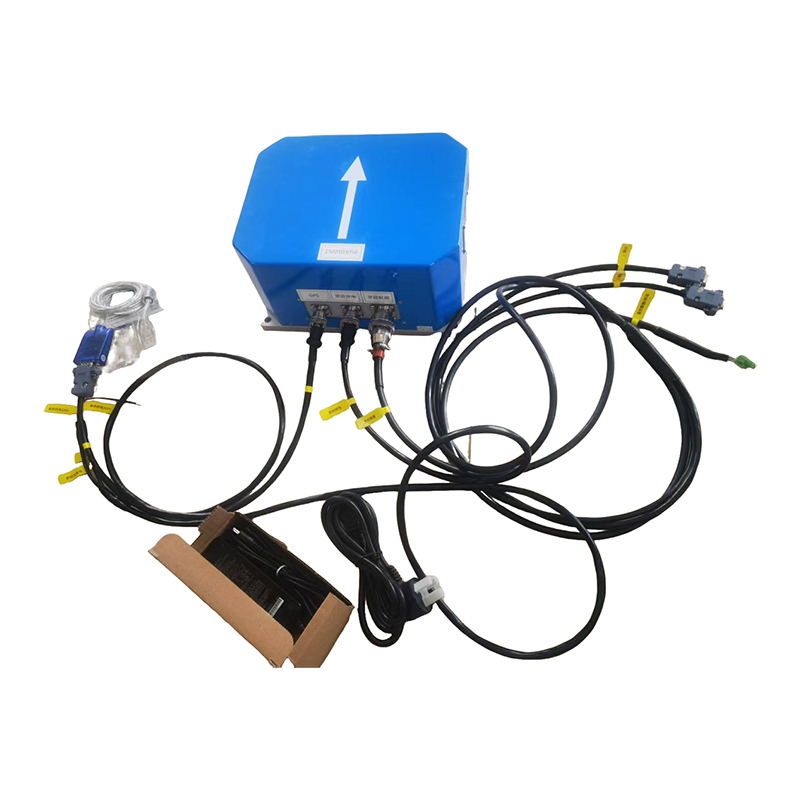

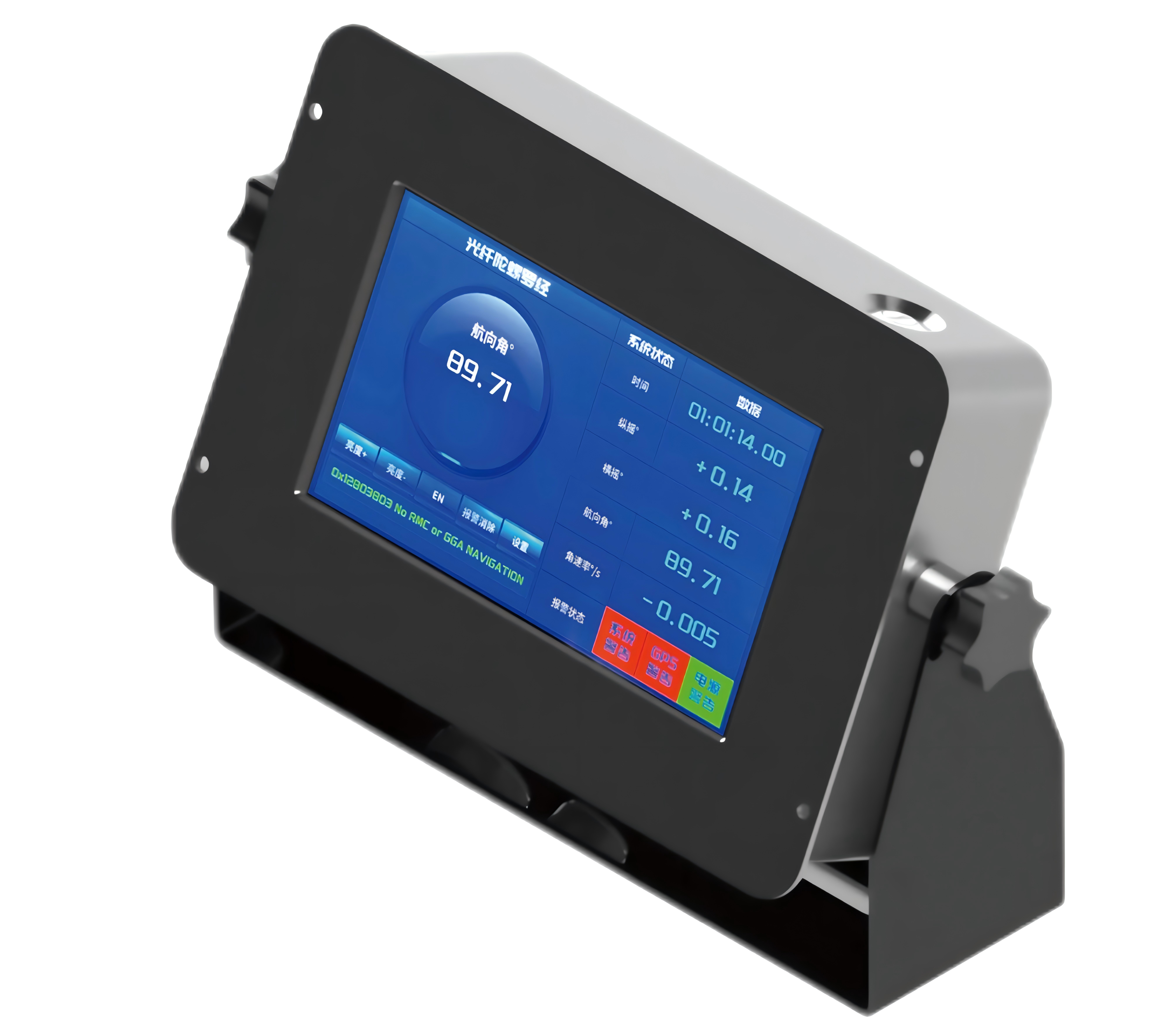

Accessories: | display; time-delay power supply; signal distributor. |
Printing | customerized Printing, OEM services |
North-seeking accuracy (deg): 0.1/0.5/0.75
Roll and pitch: 0.1°
nitial alignment: <10min
Stable point error: no more than ±0.6°×secΦ
Swing error: within ±1°×secΦ
Heading angle measurement accuracy (deg): ≤0.1
Attitude angle measurement accuracy (deg): ≤0.1
Latitude range: ±86°
External auxiliary information: GPS
Angular velocity measurement range (deg/s): ±1600
Speed range (knots): ±75
Initial alignment time (min): ≤10
Physical characteristics:
Dimensions (L×W×H) mm: 145×121.5×125
Weight: 3.5Kg
Waterproof rating: IP66
Service life (years): 15
Applications

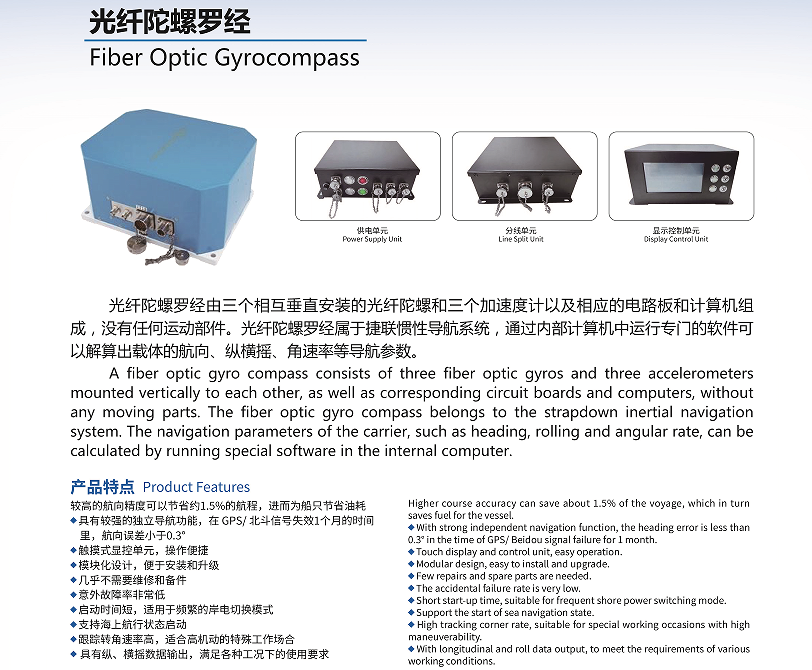

The fiber optic gyrocompass has the advantages of quick startup, light weight and easy maintenance, and is applied to official ships, ro-ro ships, commercial ships, oil tankers, luxury yachts, fishing boats, unmanned ships, etc.
Certification
IMO Resolution A.424 (XI) Performance Standards for Gyro-Compasses
IMO Resolution A.821(19) Performance Standards for Gyro-compasses for High-speed Craft
IMO Resolution A.694(17) General Requirements for Shipborne Radio Equipment Forming Part of the Global Maritime Distress and Safety System (GMDSS) and for Electronic Navigational Aids 4.
IMO Resolution MSC.191(79) Performance Standards for the Presentation of Navigation-Related Information on Shipborne Navigational Displays
IMO Resolution MSC.302 (87) Adoption of performance standards for Bridge Alert Management 6.IEC 60945:2002/COR1:2008
IEC 60945:2002/COR1:2008 Maritime Navigation and Radiocommunication Equipment and Systems –General Requirements – Methods of Testing and Required Test Results
Competitive Advantage
Fiber optic gyrocompass has the advantages of quick startup, light weight and easy maintenance.
Customer case study
The products are exported to shipowners and shipyards in South Korea, Southeast Asia, Europe, the Middle East, and other regions, and have received high praise from customers.
