| Availability: | |
|---|---|
| Quantity: | |
Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Model Number: | SSME-XF-015 （DFX-1） |
Certification: | CCS/EC(MED) |
gas cylinder capacity： | 5L,6L,6.8L, |
Working hours ： | 30-40mins 40-50mins 50-60mins 60-70mins |
Working pressure: | 30Mpa |
Material： | Steel cylinder or carbon fiber composite cylinder |
Application: | Firefighting Fire rescue |
Accessories: | HUD , Walkie-talkie |
Printing | customerized Printing, OEM services |

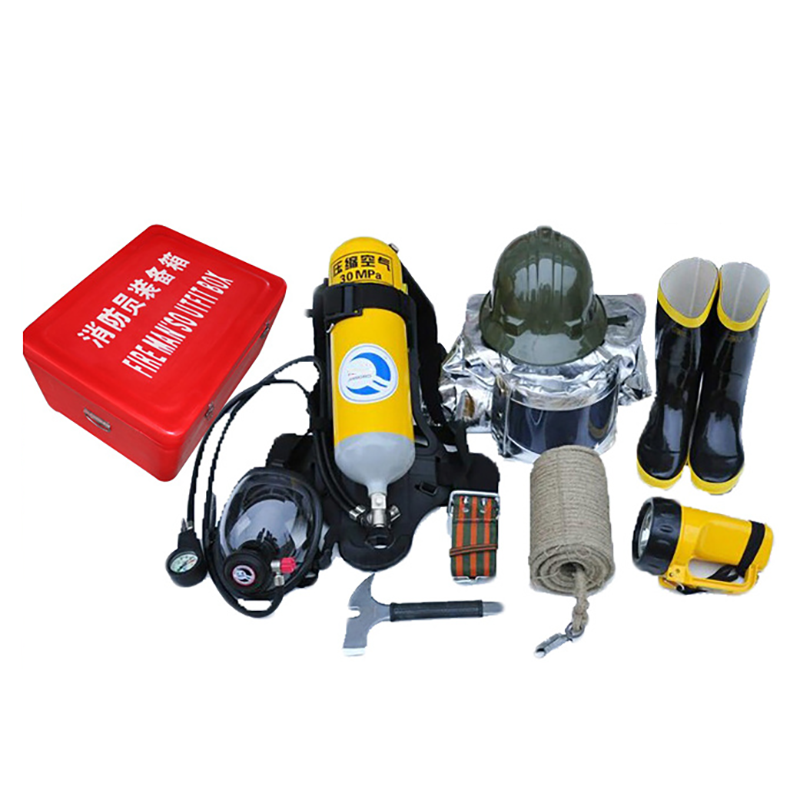

№ | Type | Technical parameters | Quantity | Remarks |
1 | protective suit | The inner surface temperature rise of the aluminum foil composite anti-graphene material shall not exceed 25℃ after being exposed to a 10KW/m2 radiant heat source for 30 seconds | 1 set | Including the jacket, trousers, foot covers and gloves |
2 | Positive pressure air breathing apparatus | The working pressure of the gas cylinder is 30Mpa | 1 set | CCS certificate and qualification certificate |
3 | Fire-resistant rescue rope | 40 meters | 1 set | CCS certificate and qualification certificate |
4 | Explosion-proof lamp | The lighting time is over 3 hours | 1 lamp | CCS certificate and qualification certificate |
5 | Taiping Axe | Insulation withstand voltage | 1 set | qualification certificate |
6 | Safety helmet | Puncture-resistant | 1 piece | qualification certificate |
7 | Fire-fighting rubber boots | Anti-slip, puncture-resistant and acid and alkali resistant | 1 pair | qualification certificate |
Applications
The application scenarios of firefighters' equipment revolve around various emergency rescue tasks. The core is to ensure the safety of firefighters themselves and support them in efficiently completing tasks such as fire fighting, saving lives, and emergency rescue. They can mainly be divided into three categories: fire fighting and rescue, special disaster handling, and emergency rescue.
Certification
CCS、DNV.GL
Wearing procedures and usage methods of firefighters' equipment
1.Put on the protective suit and trousers, fasten the trouser straps, put on the fire boots and fasten the protective foot covers, and insert the fire axe into the pocket on the trouser leg.
2. Unfasten the fire-resistant rescue rope and fasten the safety hook to the metal buckle of the fire belt.
3. Check whether the explosion-proof lamp is in good condition. If the battery is not installed, it should be installed first. For the inspection and usage methods of explosion-proof lamps, please refer to the "Explosion-proof Lamp User Manual".
4. Carry the air respirator bottle with the bottom up on your shoulder and adjust the shoulder strap and waist belt properly. Put on the protective suit jacket, cover the respirator behind the jacket to prevent strong heat radiation from the gas cylinder and rubber hose, and pass the gas supply valve through the pocket of the protective suit jacket. For the usage method of protective clothing, please refer to the "User Manual for Fire Insulation Clothing (Protective Clothing)".
5. Open the cylinder valve switch and put on the mask properly. The inspection and usage methods of the respirator are detailed in the relevant sections of the "Respirator User Manual".
6. Wear a safety helmet, carry or slung an explosion-proof lamp, and after checking that all spare parts are functioning properly, you can enter the work area.
7. It is also possible to wear the mask and use the respirator after other wear is completed, which can reduce the loss of compressed air in the gas cylinder.
8. After use, firefighters' equipment should be cleaned, organized, and inspected as required in their respective instructions to ensure it is in good condition before being placed in the packaging box for future use.
Customer case study
The products are sold far and wide to Southeast Asia, Europe, the Middle East, Latin America and other regions, and have received high praise from customers.
