Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Model Number: | SSME-XF-01 |
Certification: | CCS/EC(MED) |
gas cylinder capacity： | 5L,6L,6.8L,9L |
Working hours ： | 30-40mins 40-50mins 50-60mins 60-70mins |
Working pressure: | 30Mpa |
Material： | Steel cylinder or carbon fiber composite cylinder |
Application: | Firefighting |

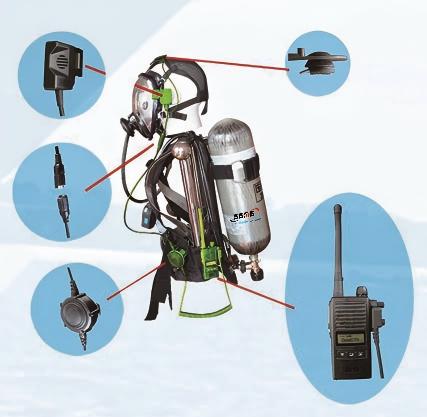

Accessories: | HUD , Walkie-talkie |
Printing | customerized Printing, OEM services |
Under thick smoke and oxygen-poor condition and any air environment with toxic gas, smoke gas and vapor pollution. 2. Under the air environment with temperature between-30degrees and+60 degrees, relative humidity between o and 100% and air pressure between 70Kpa and 125Kpa.
The main technical parameters
Model | L | Mpa | Max-L | L/min | Rlarm-Mpa | min | Kg | Packing cm |
RHZK-5/30 | 5 | 30 | 1500 | 300 | 5~6 | 50 | ≤12 | 77×30×48 |
RHZK-6/30 | 6 | 30 | 1800 | 300 | 5~6 | 60 | ≤14 | 77×30×48 |
RHZKF-2/30 | 2 | 30 | 600 | 300 | 5~6 | 20 | ≤4 | 77×30×48 |
RHZKF-3/30 | 3 | 30 | 900 | 300 | 5~6 | 30 | ≤4.5 | 77×30×48 |
RHZKF-6.8/30 | 6.8 | 30 | 2040 | 300 | 5~6 | 60 | ≤8.5 | 77×30×48 |
RHZKF-6.8X2/30 | 13.6 | 30 | 4080 | 300 | 5~6 | 120 | ≤14.5 | 77×30×48 |
RHZKF-9/30 | 9 | 30 | 2700 | 300 | 5~6 | 90 | ≤11.5 | 77×30×48 |

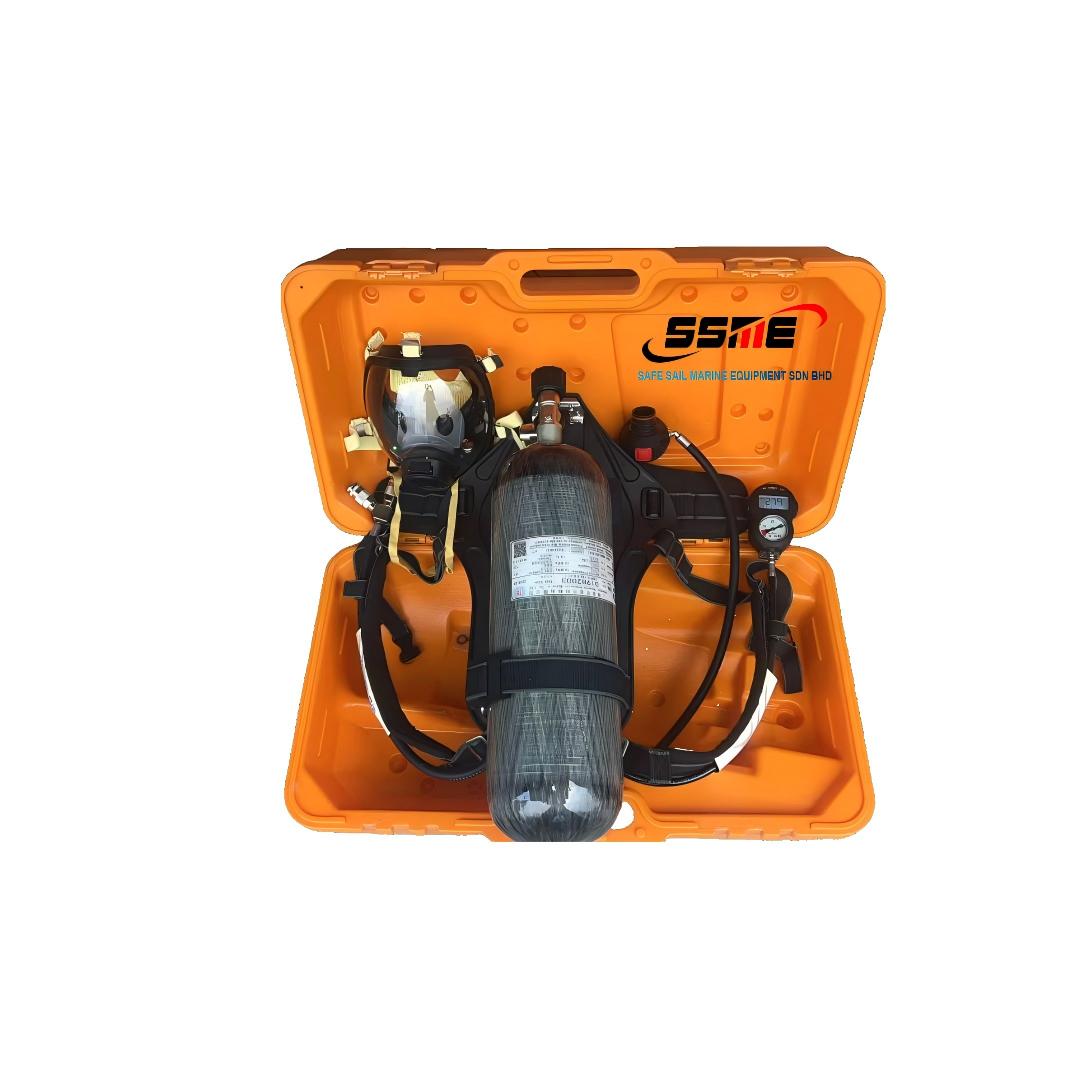

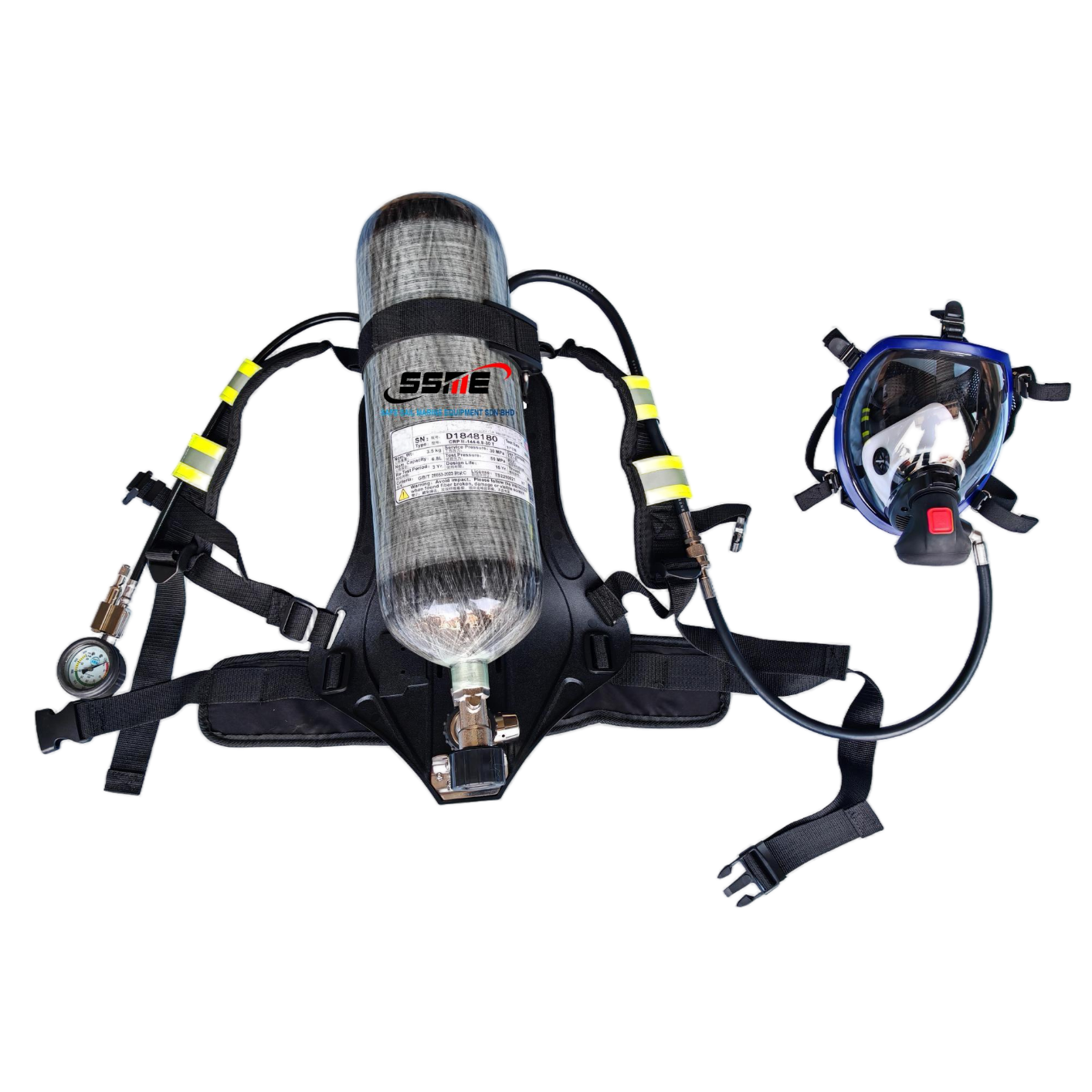

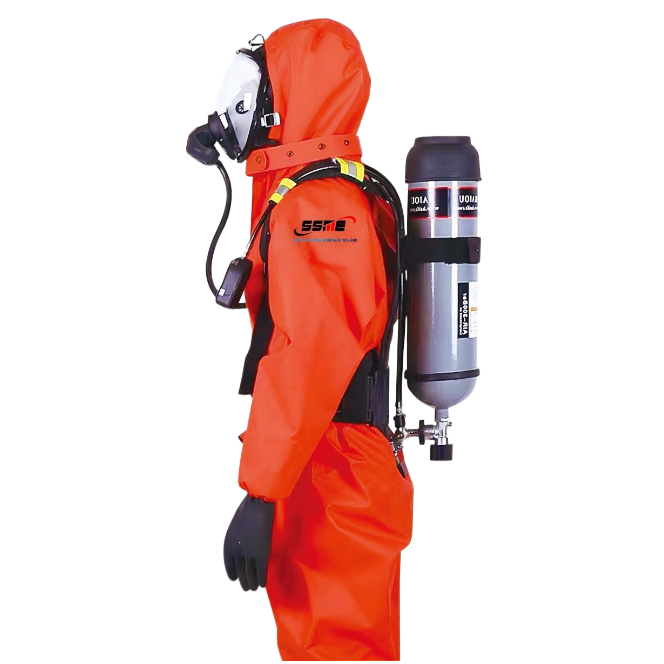

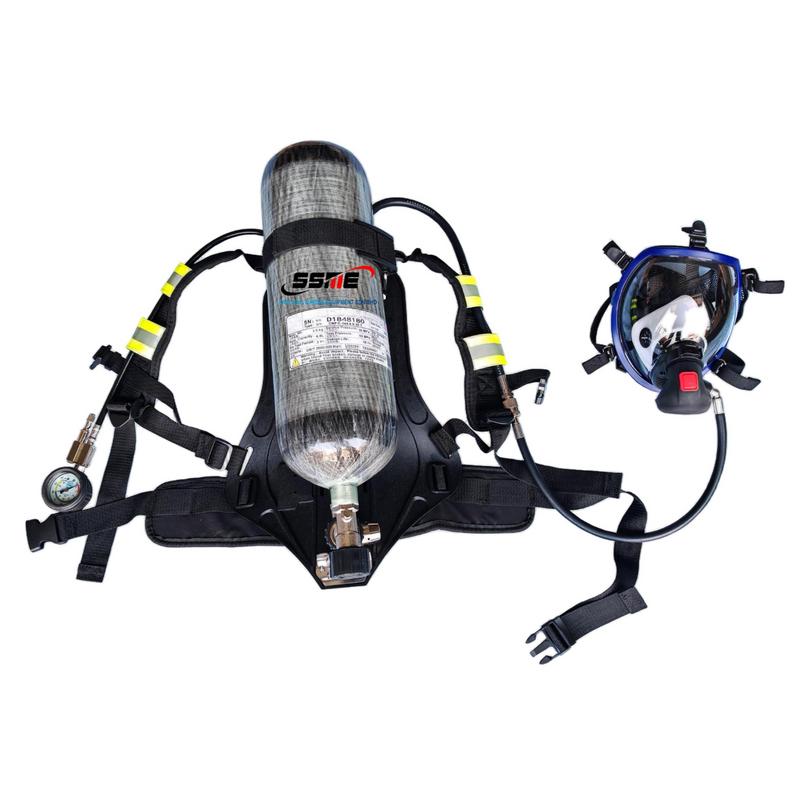

SSME’s Positive Pressure Air Respirator is a self-contained open-circuit breathing apparatus designed for hazardous environments. It protects users from thick smoke, toxic gases, steam, and hypoxia, making it ideal for firefighters, emergency rescuers, and industrial personnel in high-risk fields.
• Multiple gas cylinder options (5L/6L/6.8L/9L) with working times 30-90 minutes, adapting to different mission durations.
• Positive pressure air supply (prevents toxic gas ingress) and high airflow (>500L/min) for comfortable breathing.
• Ergonomic design (backplate with 90° bending flexibility) and lightweight materials (carbon fiber cylinders reduce weight).
• High-Safety Pressure Reducer: Reduces 30MPa cylinder pressure to a stable 0.7MPa output; equipped with a rescue interface (compatible with 1m/1.5m escape hoods) for team rescue.
• Smart HUD Device: Real-time cylinder pressure display via Bluetooth, allowing users to monitor air remaining without looking down.
• Flame-Resistant Mask: Full-face mask made of silicone rubber with Kevlar headnet (flame-retardant, tear-resistant); fits tightly to prevent air leakage.
When ships experience engine room or cargo hold fires, the respirator protects crew from smoke and toxic fumes (e.g., carbon monoxide). The 6.8L/9L cylinders provide 60-90 minutes of air, supporting long-duration fire suppression.
In petrochemical plants or oil terminals (where toxic gases like hydrogen sulfide may leak), the positive pressure design prevents gas ingress, ensuring rescuers’ safety during leak containment.
For laboratory chemical spills or mine fires (hypoxic environments), the respirator’s high airflow and reliable air supply keep users alert and capable of completing rescue or cleanup tasks.
