WT-B150
CLASS-A DSC
SSME-TX-04
| Availability: | |
|---|---|
| Quantity: | |
Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Certification: | CCS |
Model Number: | SSME-TX-04(WT‐B150) |
Frequency range: | 1.605MHz to 27.5MHz (transmission), 0.5MHz to 30MHz (reception) |
Function: | Marine safety search and rescue system |
Standard: | Technical Requirements for Marine Radio Communication Equipment of the Global Maritime Distress Safety System (GMDSS) |
Printing | Customized Printing, OEM services |
Frequency range: 1.605MHz to 27.5MHz (transmission), 0.5MHz to 30MHz (reception)
Frequency error: Within 10Hz
Working modes: SSB, DSC, AM
Operating temperature: -15 ℃ to 55℃
Working voltage: 24VDC? + 30% / 10% ‐
Operating current: Receiving: <1.0A; Launch: <20A (Max)
Protection functions: overvoltage, undervoltage, direction, overcurrent, and large standing wave protection
External interfaces: RS422, network port and USB2.0
Launch index
Output power: 200W/150W/100W
Sideband suppression: ≤ -60 DBC
Carrier suppression: ≤ -60 DBC
Spurious suppression: ≤ -60 DBC
Third-order intermodulation: ≤ -28 DBC
Reception index
Sensitivity: ≤+3dBuV (when SINAD=20dB)
Audio output: 4W/8Ω
Audio response: 350Hz to 2700Hz
Applications
It is widely applied in ships, port terminals, anchorages and water service areas.
Certification
CCS
Competitive Advantage

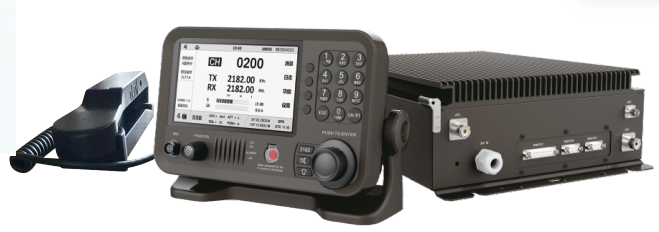

a) The controller and the main unit are designed separately, which is convenient for users to install and use
b) Outstanding SSB, DSC and NBDP receiving and transmitting performance
c) The SSB telex and DSC, NBDP telex are designed in an integrated manner
d) The 6-channel DSC distress frequency parallel duty design can be expanded to 13 channels as needed
e) Support remote software upgrade
f) Support automatic switching between internal and external GPS
g) Support switching between Chinese and English interfaces
h) By adopting large-scale integrated circuits, the product consistency and reliability are better
Customer case study
The products are sold far and wide to Southeast Asia, Europe, the Middle East, Latin America and other regions, and have received high praise from customers.
