Marine Backpack Medium-Expansion Foam Extinguisher

Product Overview

Brief Introduction

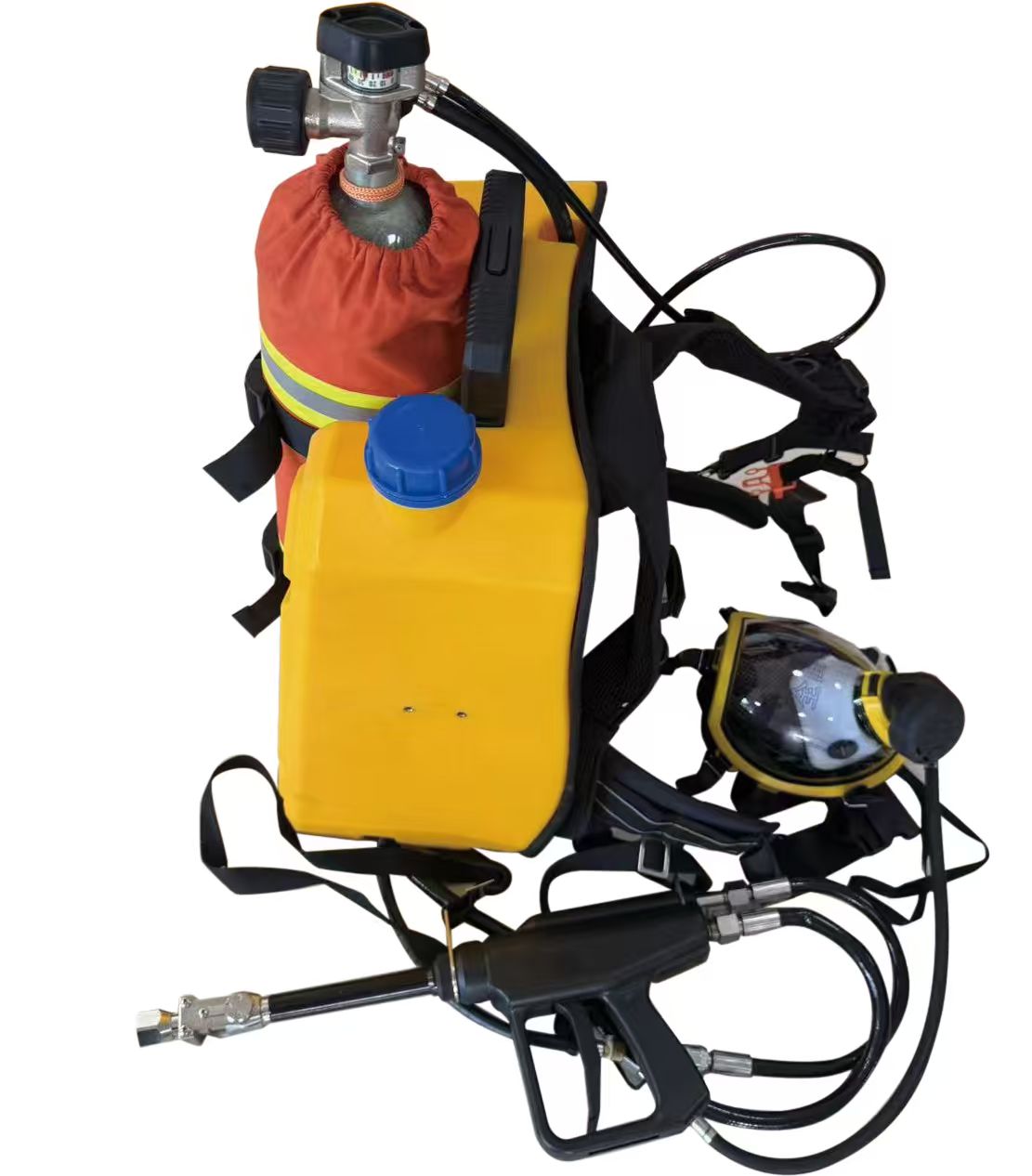

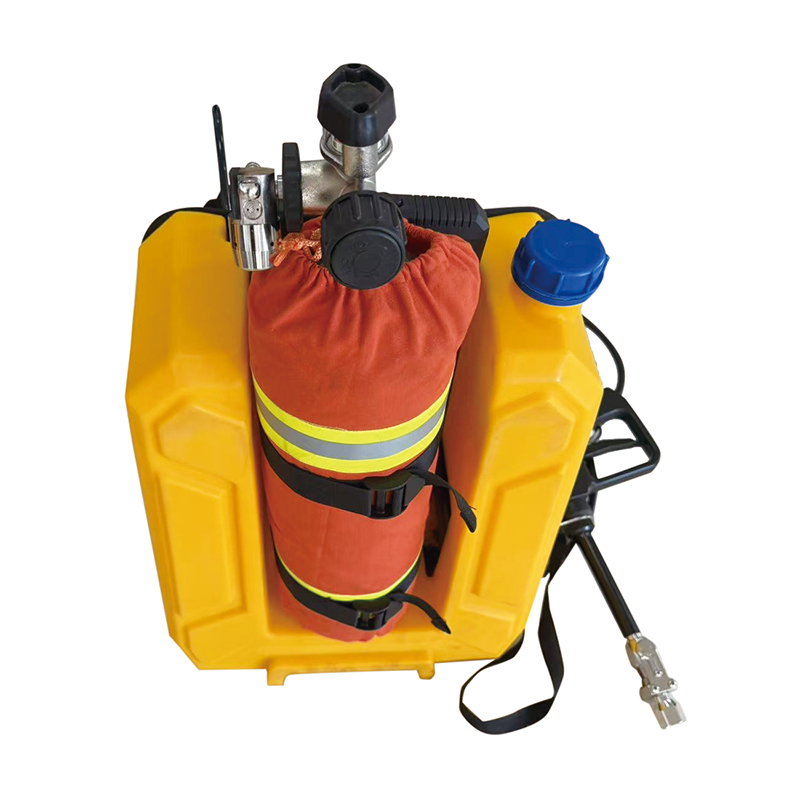

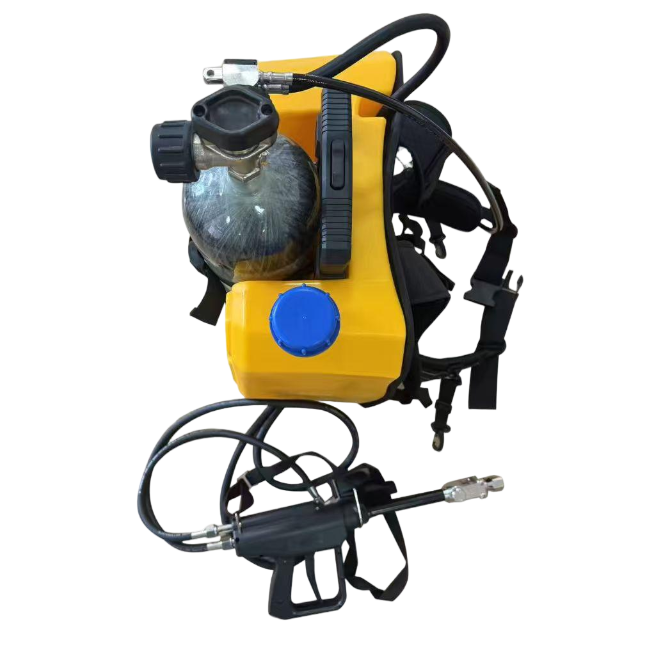

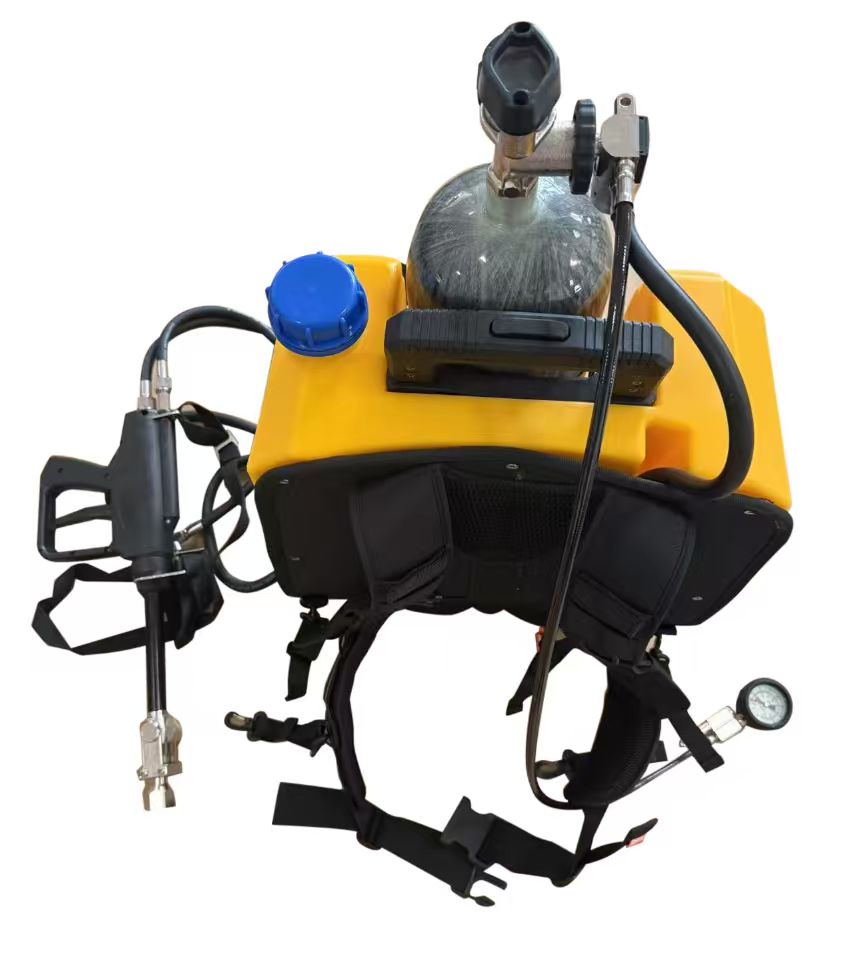

The Backpack Medium-Expansion Foam Fire Extinguishing Device by SSME is an innovative multi-functional equipment that integrates air respirator and foam fire-extinguishing capabilities. Specifically engineered for high-risk industries like natural gas, petroleum, fire-fighting, and military fields, it provides dual protection of respiratory safety and fire suppression, making it a critical tool for handling fire emergencies.

Key Selling Points

• Combines respiratory protection and foam fire-extinguishing in one portable backpack design.

• Efficiently extinguishes small-to-medium Class A (solid, e.g., wood) and Class B (liquid, e.g., gasoline) fires.

• Complies with the national standard Inspection Standard Test Program for Water Mist Guns and Backpack (Mobile) Foam Fire Extinguishing Devices (XF 1298-2016).

Core Product Features

• Dual-Function Integration: Eliminates the need for separate respiratory equipment and fire extinguishers, reducing carry load for users during emergencies.

• Superior Fire-Suppression Performance: Direct jet spray radius reaches ≥10 meters, atomized spray radius ≥6 meters, and continuous direct jet time ≥120 seconds, ensuring rapid fire control.

• Human-Centric Design: Lightweight structure (overall weight ≤35kg when filled) with an ergonomic backpack (backboard and straps) for comfortable long-term wear.

Scenario-Based Solutions

Petroleum & Natural Gas Platform Emergencies

In offshore oil rigs or natural gas stations, where flammable liquids (Class B fires) are common, the device quickly suppresses leaks or small fires. The built-in air respirator protects users from toxic fumes, enabling safe operation in closed or poorly ventilated areas.

Shipboard Initial Fire Control

For ships, early-stage fires (e.g., engine room oil leaks or cargo hold solid fires) can be contained promptly. The portable design allows crew to move freely in narrow ship corridors, preventing fire spread to critical areas like fuel tanks.

Land Industrial Fire Rescue

In factories or warehouses with wood, paper (Class A) or chemical liquid (Class B) storage, the device supports fire-fighting teams in rapid response, especially in areas where fixed fire-extinguishing systems are unavailable.

Comprehensive Product Details

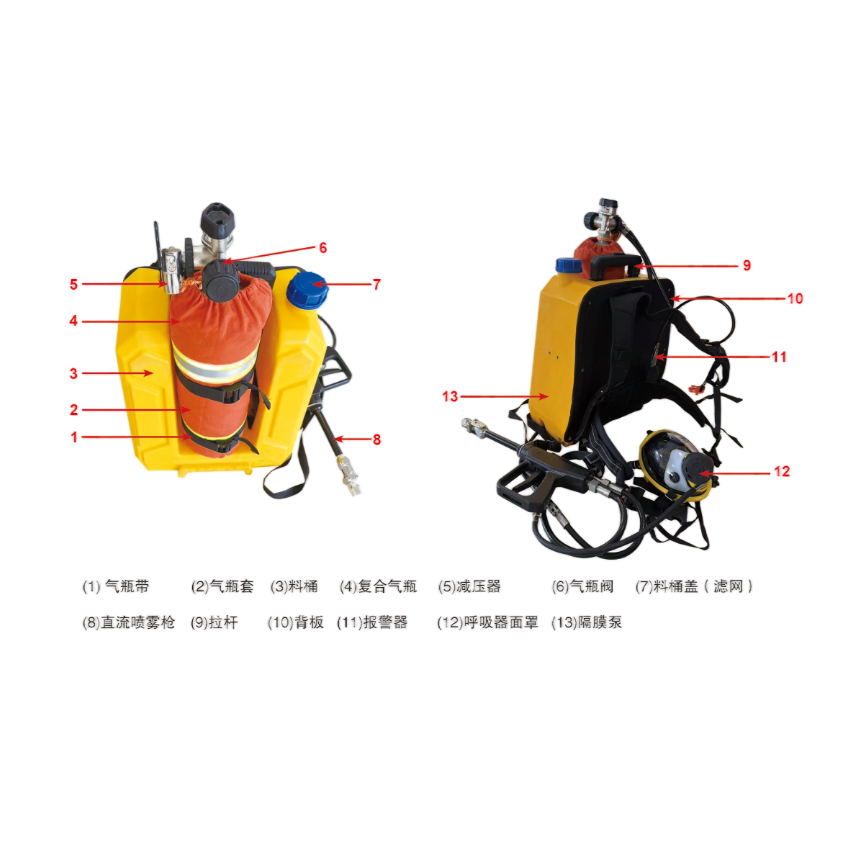

Structural Components

• Core Parts: 6.8L/9L composite gas cylinder (rated pressure 30MPa), ≥20L material barrel (1±8% tolerance), DC spray gun, pressure reducer (output pressure 0.7±0.1MPa), and respirator mask.

• Safety Accessories: Pressure gauge (range 0~40MPa), alarm (sounds at 5.5±0.5MPa, ≥90dB), and filter screen on the barrel lid to prevent clogging.

Technical Specifications

Technical Support & Services

• Certification Assurance: All products pass tests per XF 1298-2016, ensuring compliance with industry safety standards.

• Customization Services: Offers OEM and customized printing (e.g., company logos) to meet client branding needs.

• After-Sales Support: Provides 1-year warranty for core components (gas cylinder, reducer) and on-site maintenance guidance for large orders.
