Product Category: | Combined Eyewash |
Brand Name: | SSME |
Country of Origin: | China |
Model Number: | SSF11 |
Function: | Eyewash + Shower |
Standard: | ANSI Z358.1-2014 |
Application: | Production Safety |
Printing | Customized Printing, OEM services |

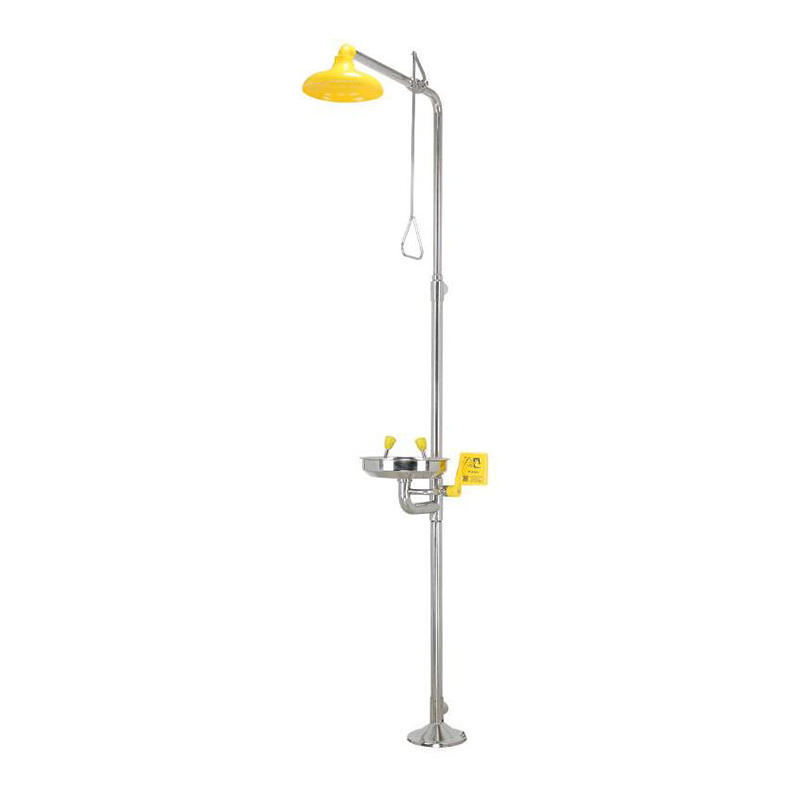

The SSME SSF11 Combined Eyewash Station is an emergency safety device integrating "emergency eyewash" and "full-body shower" functions. It is designed to quickly rinse harmful substances (chemicals, dust, liquids) from the human body, reducing continuous damage in accident scenarios. Compliant with ANSI Z358.1-2014 and CE standards, it is widely used in marine, chemical, pharmaceutical, and electronic manufacturing industries.
• Dual-function integration: Simultaneously supports eyewash and full-body shower, meeting multi-scenario emergency needs (e.g., chemical splashes on eyes or skin).
• Corrosion-resistant material: Made of 304 stainless steel, resistant to hydrochloric acid, sulfuric acid, and organic solvents, suitable for harsh chemical environments.
• Easy activation: Equipped with pull-rod or foot-operated switches (optional), no manual contact required, avoiding secondary pollution.
• Eyewash performance: Flow rate ≥11.4L/min, spray coverage of 120mm (diameter), ensuring full rinsing of both eyes. The eyewash cup is soft and skin-friendly, avoiding eye irritation.
• Shower performance: Flow rate ≥75.7L/min, nozzle height 2100mm, covering the entire body (1.5-2.0m height personnel). The water spray is uniform, with adjustable pressure (0.2-0.4MPa).
• Water quality compliance: Uses normal temperature domestic water conforming to hygiene standards, no harmful substances to the skin.
• Anti-rust & leakage-proof: 304 stainless steel main body, with electroplated surface treatment, no rust or leakage after 5 years of use.
• Internal filter: Installed at the water inlet to prevent impurities (e.g., rust, sediment) from blocking nozzles.
• Visible signage: Equipped with bright "PUSH" labels and LED indicators (optional), easy to locate in low-light environments (e.g., ship engine rooms at night).
On ships, the engine room often uses fuel oils, lubricants, and cleaning chemicals. If these substances splash on crew members (e.g., oil splashes on the face, chemical spills on the body), the SSF11 station allows immediate rinsing (15-20 minutes, as per safety standards), reducing burns or chemical poisoning risks.
In chemical plants or pharmaceutical laboratories, employees may be exposed to corrosive liquids (e.g., sulfuric acid, sodium hydroxide) or toxic dust. The station is installed near workstations (within 10 seconds of walking distance), ensuring timely emergency treatment and minimizing injury severity.
