| Availability: | |
|---|---|
| Quantity: | |
Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Model Number: | SSME-XF-02(65CWY-40,50CWY-27) |
Certification： | CCS |
Max. pump Lift： | 40M/32M |
Max. Output: | 5.7KW/4.1KW |
Flow Rate： | 30m³/h/25m³/h |
Pump Materia： | Copper |
Accessories: | 7m rubber suction pipe; 20m fire hose; fire hydrant; fire coupling |
Printing | customerized Printing, OEM services |

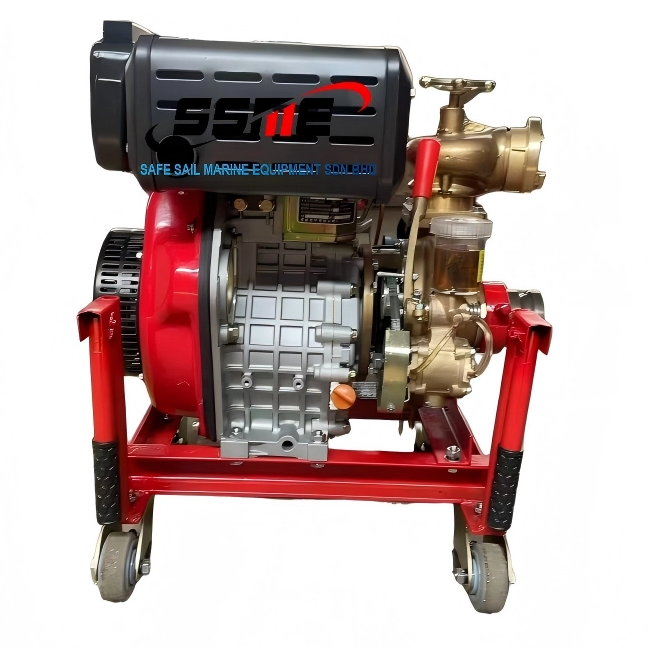

The 65CWY-40 Marine Diesel Engine Emergency Fire Pump is developed by our company in accordance with the provisions of China Classification Society (CCS) Rules for Classification and Construction of Sea-Going Steel Ships - 1996 and International Convention for the Safety of Life at Sea (SOLAS), as well as other relevant provisions. It is mainly used for emergency fire-fighting on ships, and is also suitable for industrial and mining enterprises, ports and terminals, warehouses and freight yards, and other places.
Suction Lift：0.07MPa
Max. pump Lift：40m
Max. Output：5.7KW
Flow Rate : 30m³/h
Energy Type：Diesel
Rotational Speed：3600 r/min
Unit Weight：80KG
Pump Material：Copper
Applications
It is mainly used for emergency fire-fighting on ships, and is also applicable to industrial and mining enterprises, ports and terminals, warehouses and freight yards, and other such places.
Certification
China Classification Society Certification
Competitive Advantage
The pump unit is composed of a diesel engine, water pump, sliding vane pump, frame, and other components. It features advantages such as light weight, small size, flexible mobility, quick start-up, fast water discharge, large fuel tank capacity, corrosion resistance, reliable operation, and easy maintenance. In occasions where the use of a storage battery is permitted, the unit can be equipped with and use a storage battery starting device.
Customer case study
The products are exported to shipowners and shipyards in South Korea, Southeast Asia, Europe, the Middle East, and other regions, and have received high praise from customers.
