| Availability: | |
|---|---|
| Quantity: | |
Product Category: | marine navigational rada |
Brand Name: | SSME |
Country of Origin: | china |
Model Number: | SX-1311 |
Size: | 500*325mm |
Transmitter | All solid-state |
Operating Temperature | -25℃ ~ +55℃ |
Transmit Power | 200mW |
Horizontal Beamwidth | 4.8°±10% |
Vertical Beamwidth | 21.5°±10% |
Printing | Customized Printing, OEM services |
Avoidance (Core Application, Mandatory IMO Requirement)
1. Long-Range Target Detection: Detects surface targets such as ships, fishing boats, yachts, and wooden sailboats in daylight, nighttime, heavy fog, heavy rain, and complete darkness. While the naked eye can only see these targets at a distance of a few nautical miles, the radar can cover tens of nautical miles.
2. Collision Risk Assessment (ARPA Automatic Radar Plotting): The radar has a built-in ARPA function, automatically calculating the approaching vessel's course, speed, closest encounter distance (DCPA), and shortest encounter time (TCPA), predicting collision risks in advance and allowing for timely course changes and deceleration to avoid collisions.3. Identification of Small Hazardous Objects: Detects unlit small boats, buoys, fishing nets, buoys, and lifeboats—targets completely invisible to the naked eye at night.

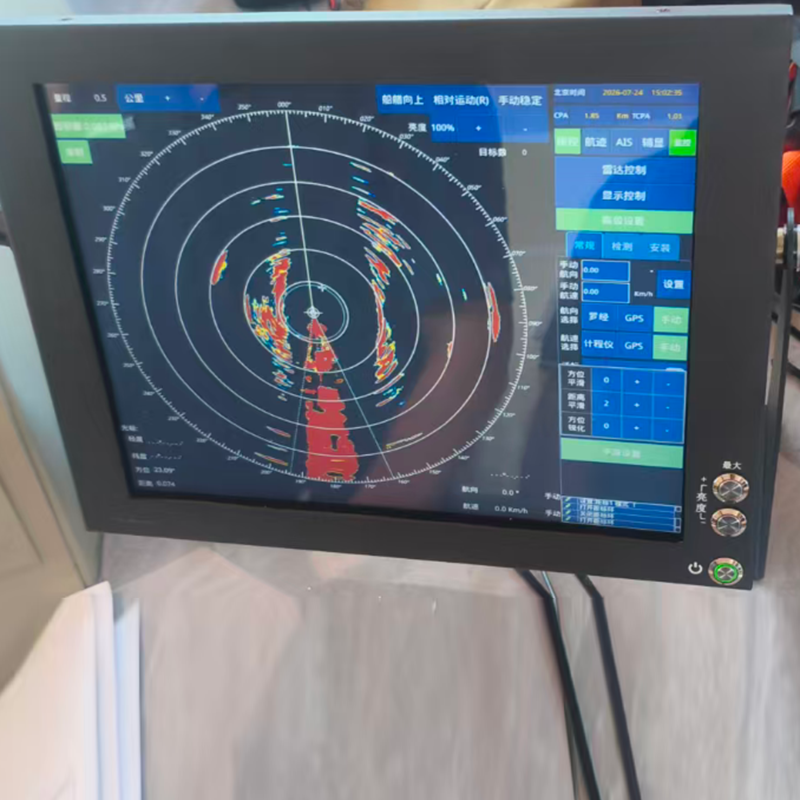

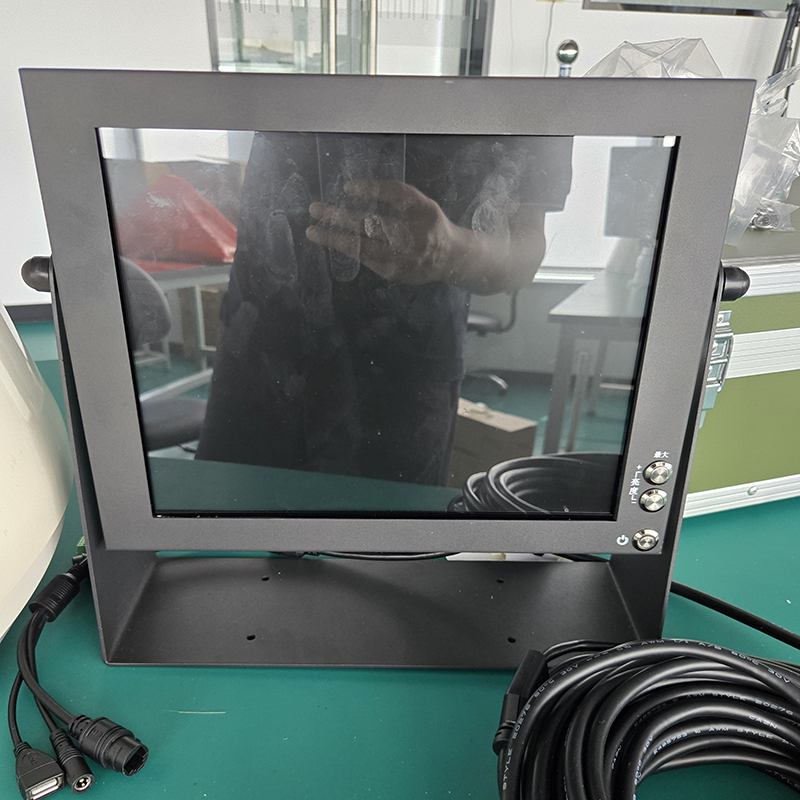

The terminal software is compatible with various high-resolution displays and offers a wide viewing angle for clear visibility from all directions. Featuring intelligent functions, it adapts to large display screens and allows flexible selection of display terminals as required.
Item | Parameter | Item | Parameter |
|---|---|---|---|
Flexibility | Safety design; no accessible moving parts under normal operation | Transmitter | All solid-state |
Operating Temperature | -25℃ ~ +55℃ | Transmit Power | 200mW |
Relative Humidity | 95%RH at +35℃ | Polarization | Horizontal polarization |
Water Resistance | IPX6 | Horizontal Beamwidth | 4.8° ±10% |
Resistant Wind Speed | 51m/sec | Vertical Beamwidth | 21.5° ±10% |
Power Consumption | ≤40W | Sidelobe Level | ≤-15dB (within ±10°) |
DC Input Voltage | DC9V ~ DC32V | Noise Figure | Less than 6dB |
Transmit Ready Time | Immediate transmission upon power-on (solid-state transmitter) | Main Beam Blind Zone | Less than 10m |
External Dimension | Height: 345mm, Diameter: 540mm | Sea & Rain Clutter | 3~5 times lower than pulse radar |
Weight | ≤10kg | Scan Repetition Frequency | 200-540Hz (variable by mode) |
Radar Range | 50m ~ 36nm (adjustable) | Scan Time | 1.1ms ±10% |
Antenna Rotation Speed | 24rpm | Maximum Scan Bandwidth | 75MHz |
Transmit Frequency | 9350 MHz ± 50MHz | Communication Protocol | 100BASE-T High-speed Ethernet |
Applications
Applicable to various vessel anchoring and mooring operations, anchorage monitoring, berthing and unberthing, towing operations, weather, sea condition and search and rescue scenarios, severe sea condition monitoring, maritime search and rescue (SAR) for fisheries and engineering special vessels, and vessel security and patrol (warships, maritime law enforcement vessels) for long-range sea target surveillance. Maritime patrol boats and coast guard vessels use radar to monitor suspicious small speedboats and unregistered vessels, performing maritime patrol, anti-smuggling, and anti-smuggling missions. Comprehensive sea surface situational awareness with multi-range switching, balancing long-range, large-area scanning with close-range, detailed observation, providing a complete understanding of vessel dynamics across the entire sea area.
Certification:
CCS
Competitive advantages
Radar can identify large waves and swell echoes, predicting areas of high waves; heavy rain and dense fog generate clutter, aiding in identifying areas with poor visibility and allowing for early deceleration.
Maritime Search and Rescue (SAR): After a ship is in distress or personnel fall overboard, radar can search for life rafts, life buoys, and small boats at long distances; maritime patrol vessels and search and rescue ships rely on radar to conduct search and rescue operations around the clock, unaffected by darkness or dense fog.
Customer case study
The products are sold far and wide to Southeast Asia, Europe, the Middle East, Latin America and other regions, and have received high praise from customers.
