Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Model Number: | FSY-96 |
Usage scenarios: | Fully enclosed/semi-enclosed space |
Regeneration capacity: | Regeneration capacity ≮ 96 person-hours per unit |
weight: | ≤26.5 kg |
external dimensions： | ≤360mm×350mm×310mm |
Printing | customerized Printing, OEM services |

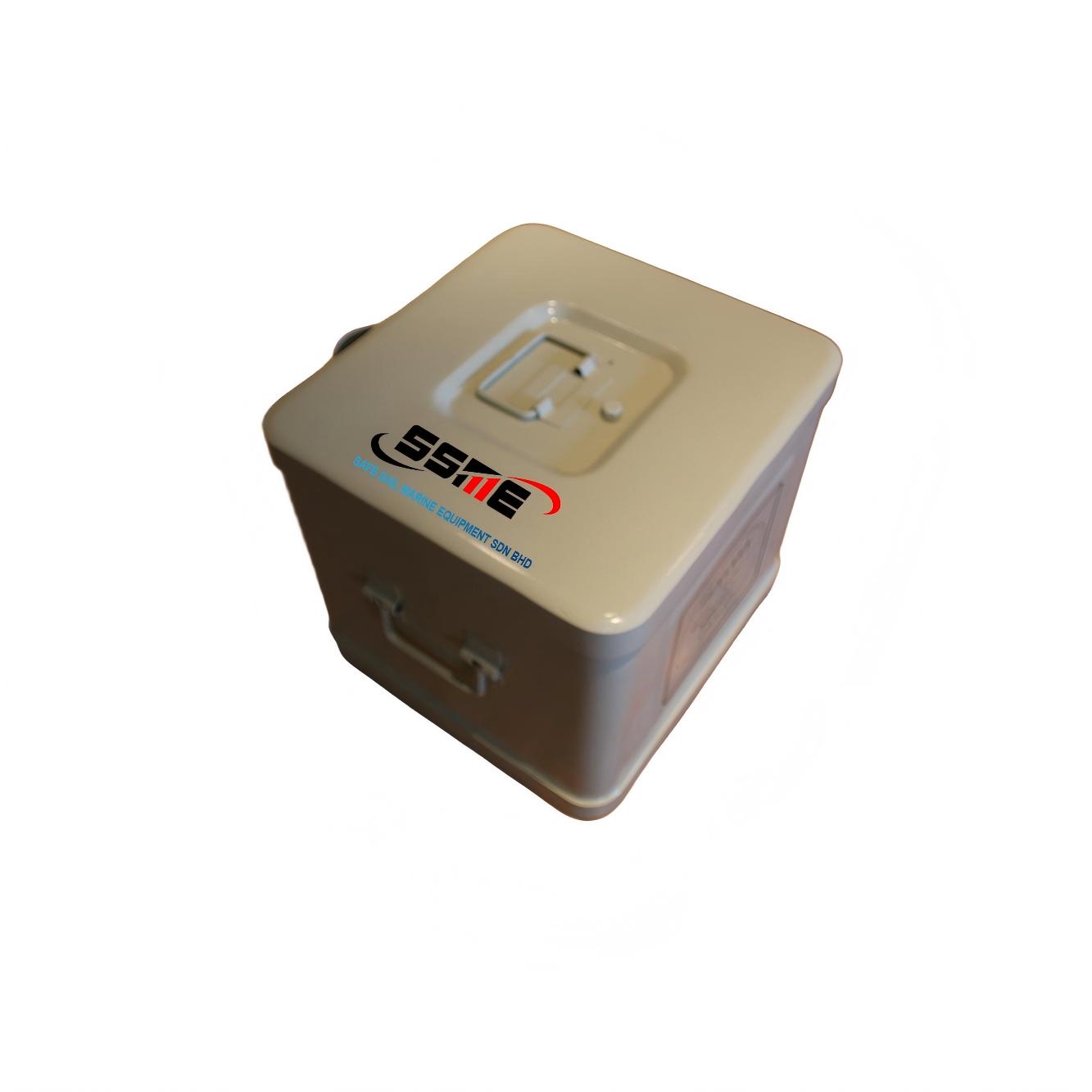

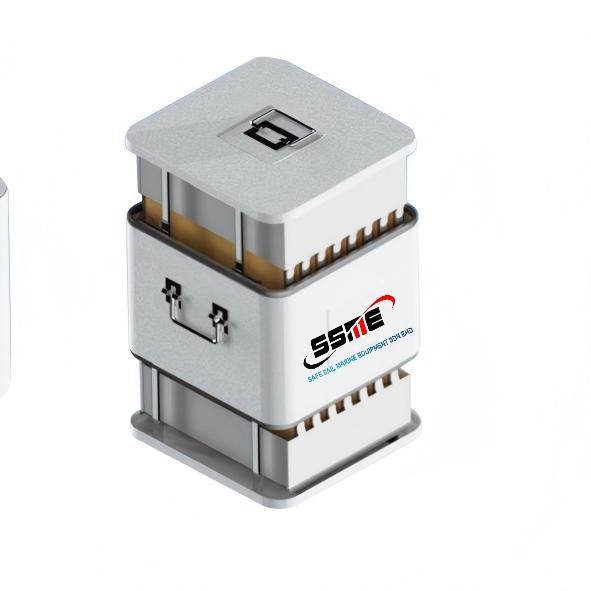

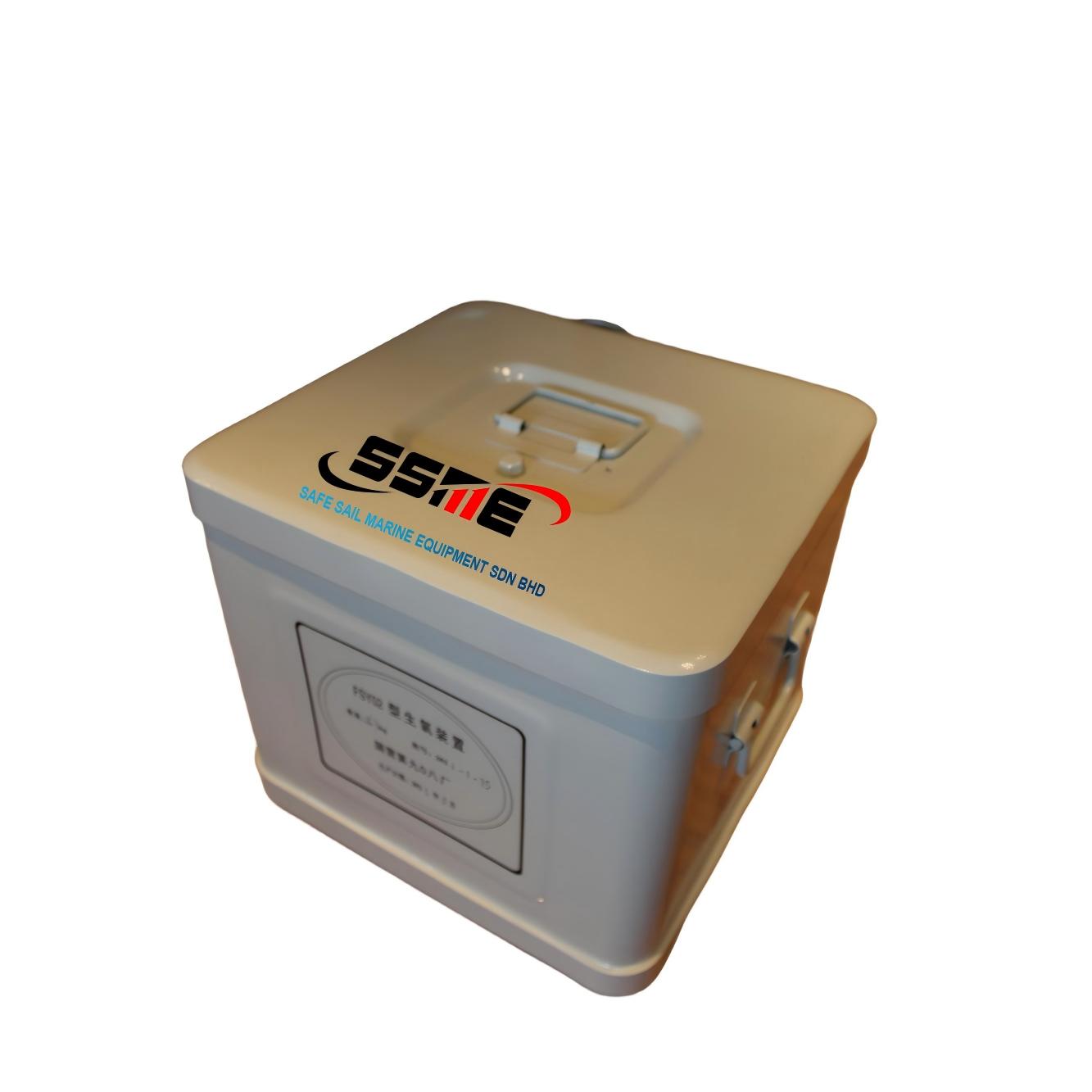

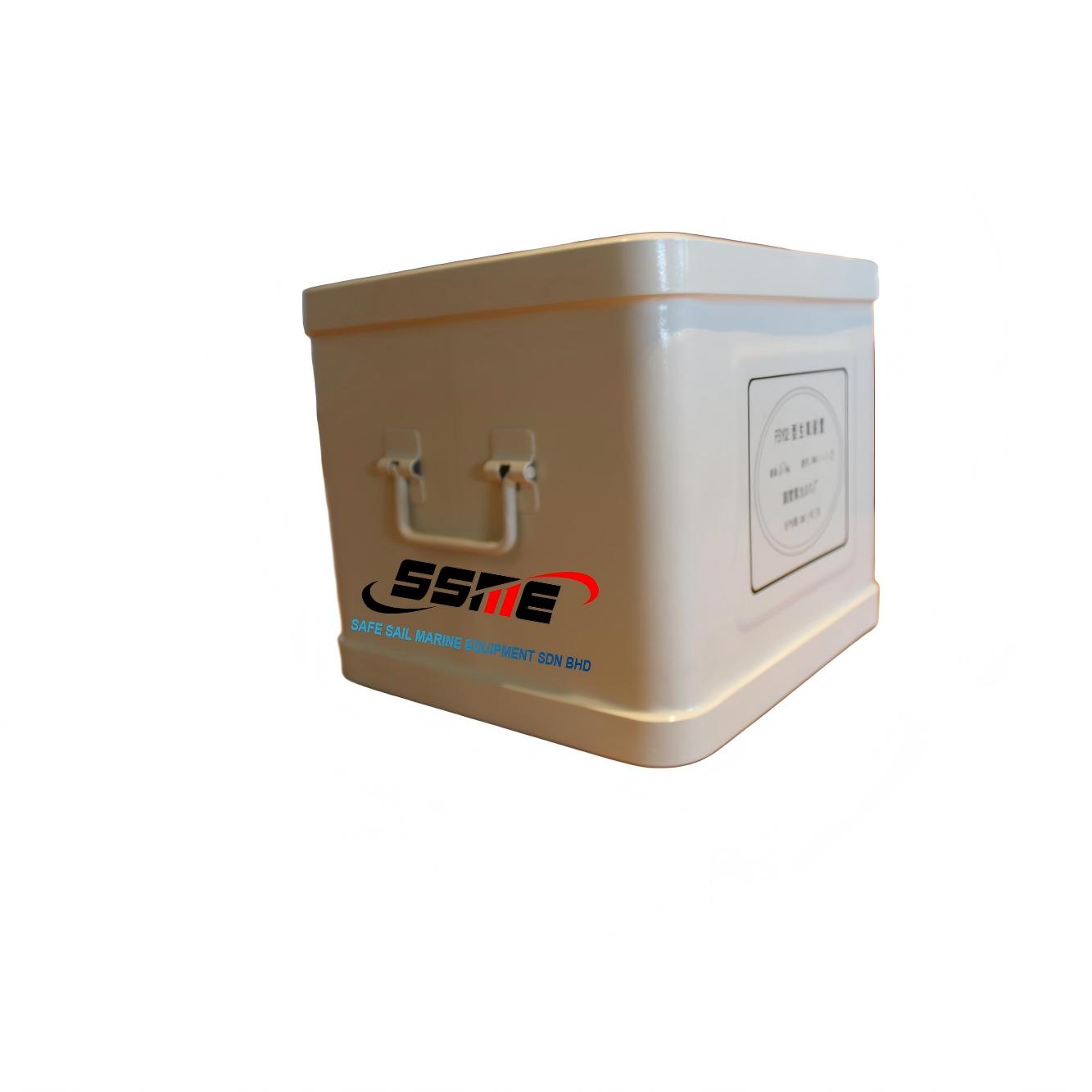

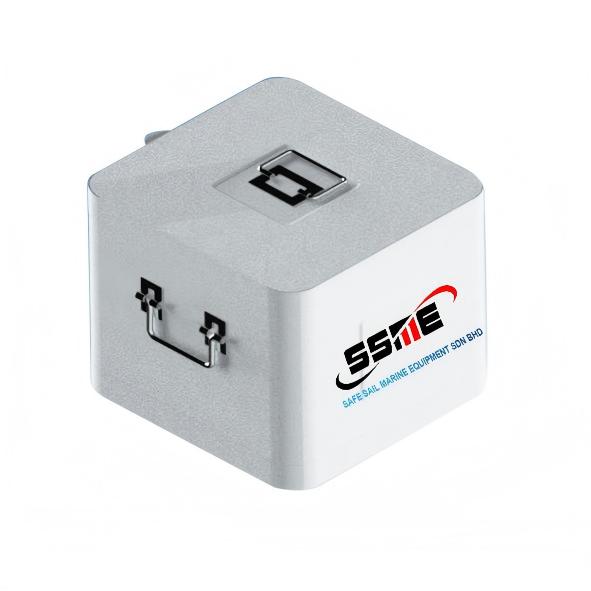

The SSME FSY-96 Regenerative Agent-Air Regeneration Device is a self-sustaining air treatment system designed for confined spaces. It realizes dual functions of carbon dioxide (CO₂) absorption and oxygen (O₂) release without external energy input, maintaining a safe and breathable environment for personnel in enclosed areas. It is a critical safety equipment for marine, civil defense, and underground projects, serving as a primary or backup oxygen source.
• Energy-free operation: No electricity or external power required, suitable for emergency scenarios (e.g., power outages in ship cabins).
• High regeneration capacity: Supports ≥96 person-hours per unit, meeting long-term oxygen needs of small teams.
• Long storage life: 10-year validity under sealed and normal storage conditions, reducing replacement frequency and costs.
• CO₂ absorption efficiency: Removes up to 90% of CO₂ in confined spaces within 30 minutes, keeping concentrations below 1% (safe standard).
• Oxygen release capacity: Releases 2.5L of O₂ per hour per unit, maintaining oxygen levels at 19.5%-23.5% (optimal for human breathing).
• Regenerative agent stability: Uses high-purity potassium superoxide (KO₂) as the core agent, ensuring consistent performance without toxic by-products.
• Compact size: ≤360mm×350mm×310mm, easy to store in narrow spaces like ship refuge chambers or underground tunnels.
• Lightweight: ≤26.5kg, easy to carry by 1-2 personnel during emergencies.
• Easy activation: Equipped with a one-click opening mechanism, no professional skills required, suitable for urgent use.
On cargo ships, oil tankers, or cruise ships, the device is installed in refuge chambers. In case of accidents (e.g., fires, collisions) that block escape routes, it provides 96 person-hours of breathable air for 4-6 crew members, buying time for rescue operations.
In civil air defense tunnels, underground command centers, or mine refuge stations, it serves as a long-term oxygen supply system. During natural disasters (e.g., earthquakes) or man-made emergencies (e.g., gas leaks), it maintains a safe environment for shelter personnel until external rescue arrives.
Parameter | Value |
Regeneration Capacity | ≥96 person-hours |
Oxygen Release Rate | 2.5L/hour |
CO₂ Absorption Efficiency | ≥90% (30-minute test) |
Storage Life | 10 years (sealed) |
Weight | ≤26.5kg |
Dimensions | ≤360×350×310mm |
Origin | Malaysia/China |
• Material safety: The outer casing is made of fire-retardant ABS plastic, resistant to high temperatures (up to 120℃) and corrosion.
• Leakage prevention: Sealed packaging with a pressure valve, preventing agent leakage during storage or transportation.
• Quality certification: Complies with international safety standards for confined space equipment, ensuring no harmful emissions.
Offers customized packaging (e.g., adding shipyard logos) and agent replacement cycles (e.g., adjusting agent quantity for larger refuge chambers).
• Provides free replacement of expired regenerative agents within the first year of purchase.
• Offers 24/7 emergency consulting via hotline, guiding users through activation and troubleshooting during crises.
Sends engineers to conduct on-site installation guidance for large-scale projects (e.g., civil air defense tunnels) and trains personnel on emergency use and storage management.
