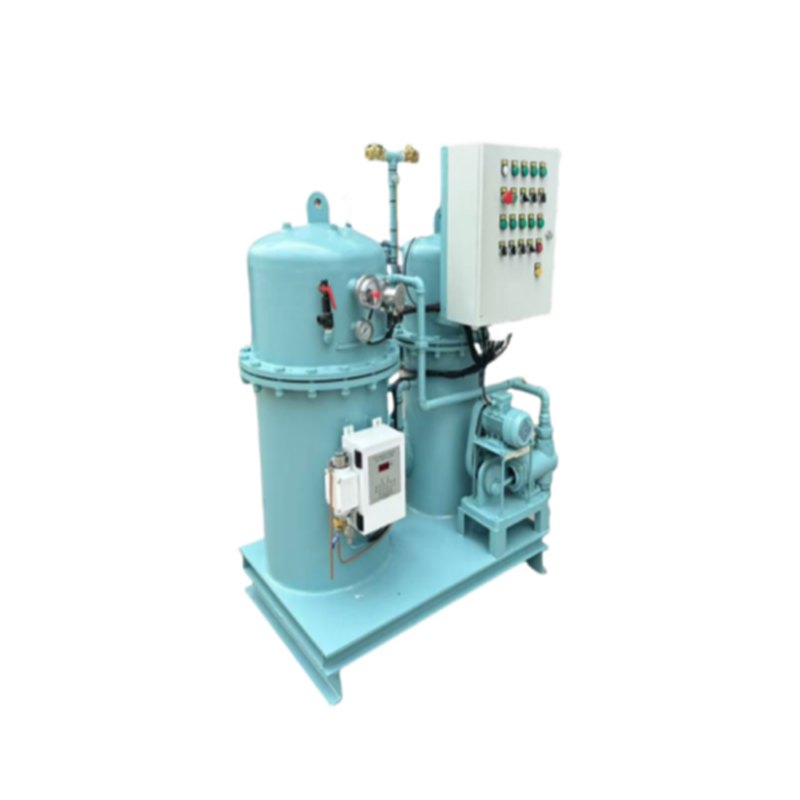

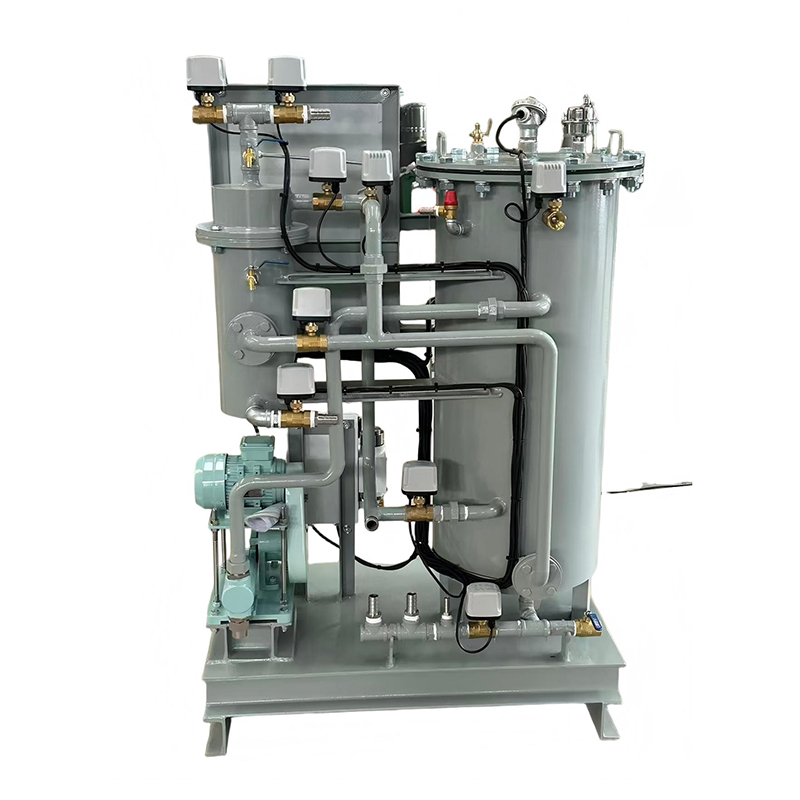

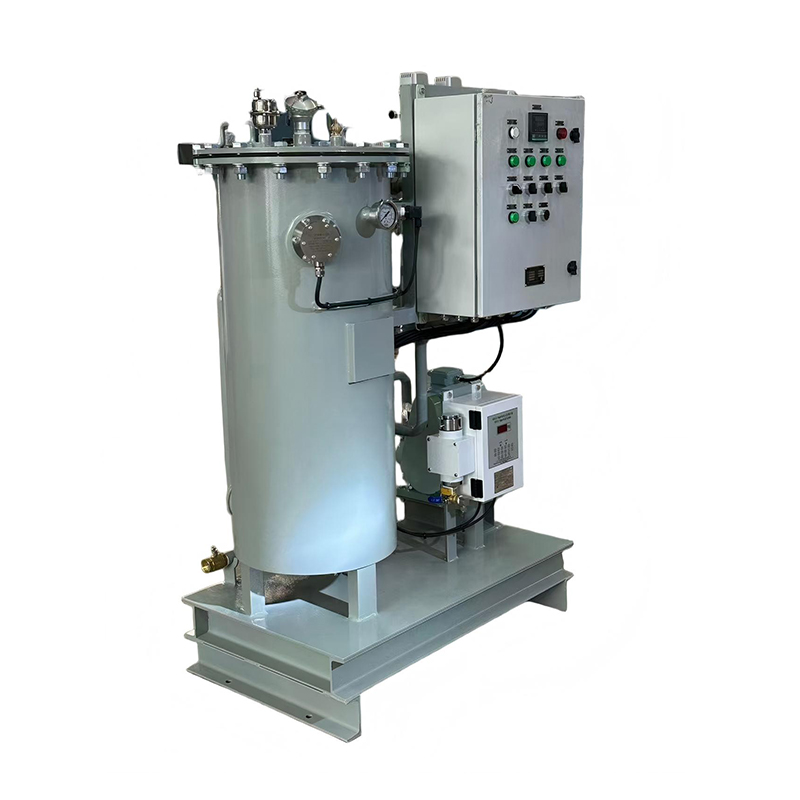

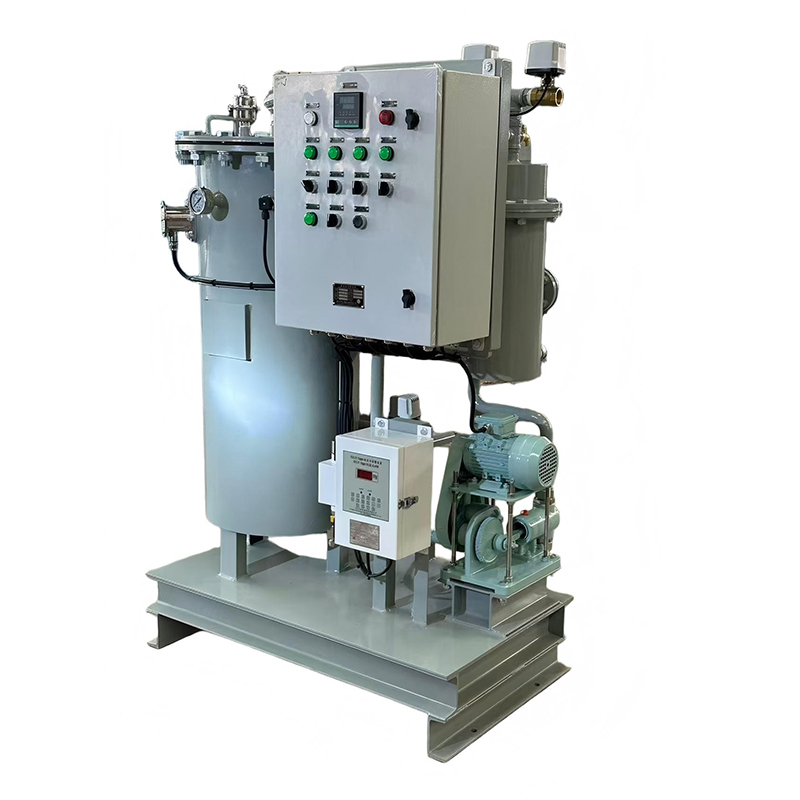

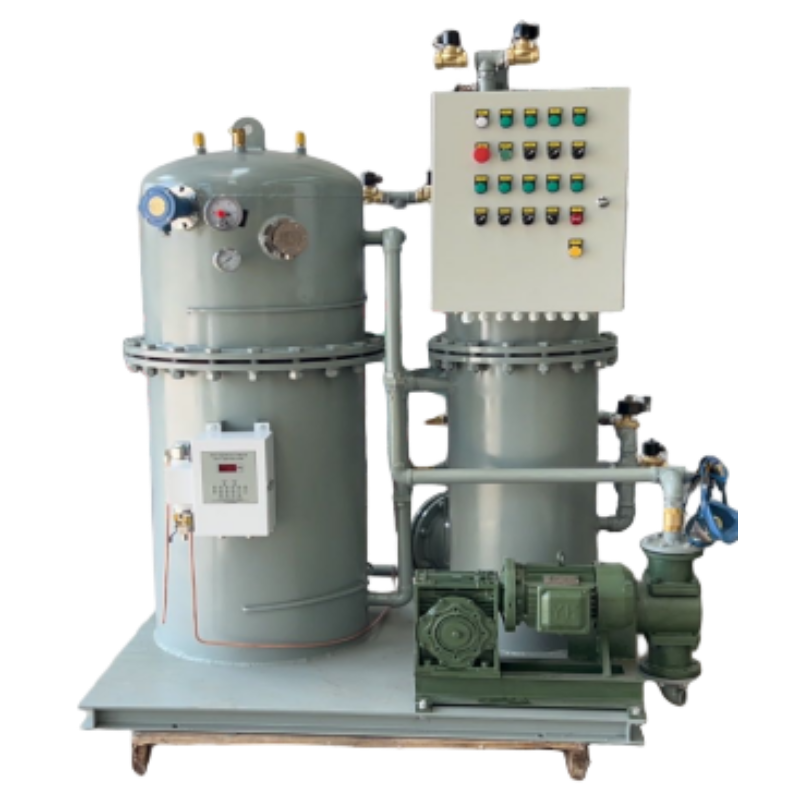

OWS series 15ppm bilge water separator Ship oil-water separator · Oily Water Separator（OWS） ·15ppm Bilge Separator Bilge Water Treatment Unit Marine Oily Water Separato

Oil-water separators are used to treat oil-water mixtures from bilge tanks, oil that has accumulated in any compartment of a ship, and is discharged into the sea. The oil-water separator consists of three subunits: the separator unit, the filter unit, and the Oil Content Monitor (OCM) and control unit. It has received full type approval from Classification Societies, including BV, CCS, RMR, and others.

he device is divided into three levels of processing

one-stage、 Secondary fiber filter interception separation

The three-stage ultrafiltration is a hollow fiber membrane separation process. After long-term operation, it will be polluted, scaled or even blocked, and needs to be cleaned regularly.

When the trans-membrane differential pressure exceeds 0.2MPa or the continuous operation is more than 6 months, choose one

Factors affecting the separation of oil and bilge water:

• Density: Since water is denser than oil, it will rise

• Sufficient density difference: seawater is denser than freshwater.

• Viscosity of a continuous fluid: A less viscous, less dense fluid provides better conditions for oil to move towards the surface than a more viscous, denser fluid.

• Temperature: Temperature plays a crucial role. It is an important factor affecting density and viscosity.

• Particle Size: The separation of oil and water is directly proportional to the size of the oil particles.

Marine oil water separator structure

• Products include: Bilge Water Inlet, Oil Separation Stage, Emulsion Tank, Chemical Metering Pump, Control Panel, Oil and Solids Wastewater, Chemical Stage, Dissolved Air Inlet.

• Flotation Stage Inlet, Falling Water, Backwash Outlet, Fresh Water Inlet (to Filtration stage, filtration stage, oil quantity monitor

Applications

Oil-water separators are applicable to various types of vessels, including cargo ships, passenger ships, oil tankers, fishing boats, and barges. During navigation or at berth, these vessels produce oily wastewater in the engine room bilge, which may contain a variety of fuel oils, high-density residual sludge, and emulsion mixtures composed of oxidized iron, surfactants, etc. Marine oil-water separators can effectively treat this wastewater, ensuring compliance with discharge standards. According to the International Convention for the Prevention of Pollution from Ships, vessels must be equipped with oil-water separators within 12 nautical miles from shore. This regulation aims to protect the offshore environment and prevent oil pollution from damaging the marine ecology. Therefore, vessels operating within this range must ensure that their oil-water separators are in normal working condition. In addition to the maritime field, the technology and principle of marine oil-water separators can also be applied to other occasions that require the treatment of oily wastewater, such as the oil wastewater treatment in industrial and mining enterprises.

Certification

IMO MEPC.107(49)

CCS

Competitive Advantage

1. No chemical emulsion breaker needed, low operation cost.

2. No ultra-filter membrane adopted, no short life, high cost, easy polluted shortcomings.

3. Not sensitive to dirty due to its open pore sponge structure, need not flushed.

4. The coalescer is a traditional technology to operator, easy maintenance

5. Long life of filter member, low expense to change.

6.  Small size and footprint, easy for installation.

7. Capacitive liquid level sensor with automatic control of discharge of oil / water valve, the probe sensitivity, less affected by the viscosity of heavy oil

Customer case study

The products are exported to shipowners and shipyards in South Korea, Southeast Asia, Europe, the Middle East, and other regions, and have received high praise from customers.
