. Detailed Product Description:

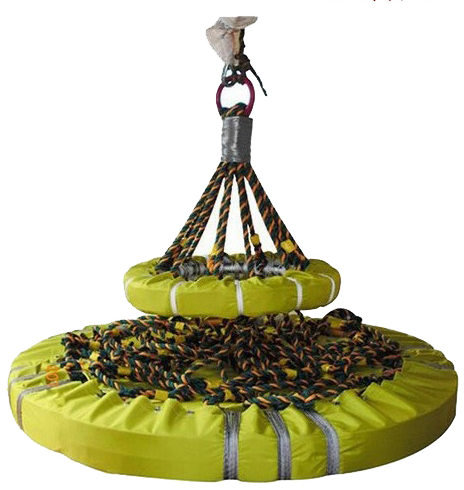

The HY series ship platform hoist cages can be classified into rated passenger capacities of 2 people, 4 people, 6 people, 8 people, 10 people, etc. They are used for the loading and unloading of personnel and materials on various platform ships.
Model | HY4 | HYL6 | HYL10 | HYL12 | HYL18 |
Total height | 6320mm | 10050mm | 10050mm | 10050mm | 10050mm |
Maximum diameter | 1420mm | 1600mm | 1860mm | 2100mm | 2500mm |
Distance between the upper and lower circles | 2000mm | 2200mm | 2200mm | 2200mm | 2200mm |
Test load | 1090kg | 1630kg | 2640kg | 3140kg | 4620kg |
Secure workload | 480kg | 600kg | 1000kg | 1200kg | 1800kg |
Buoyancy | >30kg | >45kg | >75kg | >90kg | >135kg |
Weight | 65kg | 95kg | 120kg | 130kg | 150kg |
4. Applications:
It is widely applied in oil platforms, ship transfer personnel, and helicopter emergency rescue.
5. Certification:
CCS inspection report, ABS certificate, CE certification
6. Competitive advantages:
The HY type foldable personnel hoist basket, when folded, is compact in size, does not take up much space, and is suitable for long-term storage on the deck or in the emergency cabin, facilitating transportation and storage.
7. Customer case study：
The products are sold far and wide to Southeast Asia, Europe, the Middle East, Latin America and other regions, and have received high praise from customers.
Hot Tag： Hoist cage, platform hoist cage, Marine hoist cage, folding hoist basket, oil platform hoist cage, horizontal hoist cage Rescue Hoist Cage
