Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Model Number: | SSME-TX-06(CDD-300) |
Rated Power: | 300W |
Certification: | ZY |
Rated Power: | 8Ω |
Operating Voltage: | 24V |
Sound Pressure Level: | >131dB |
Frequency： | 400Hz~700Hz |
Printing | customerized Printing, OEM services |

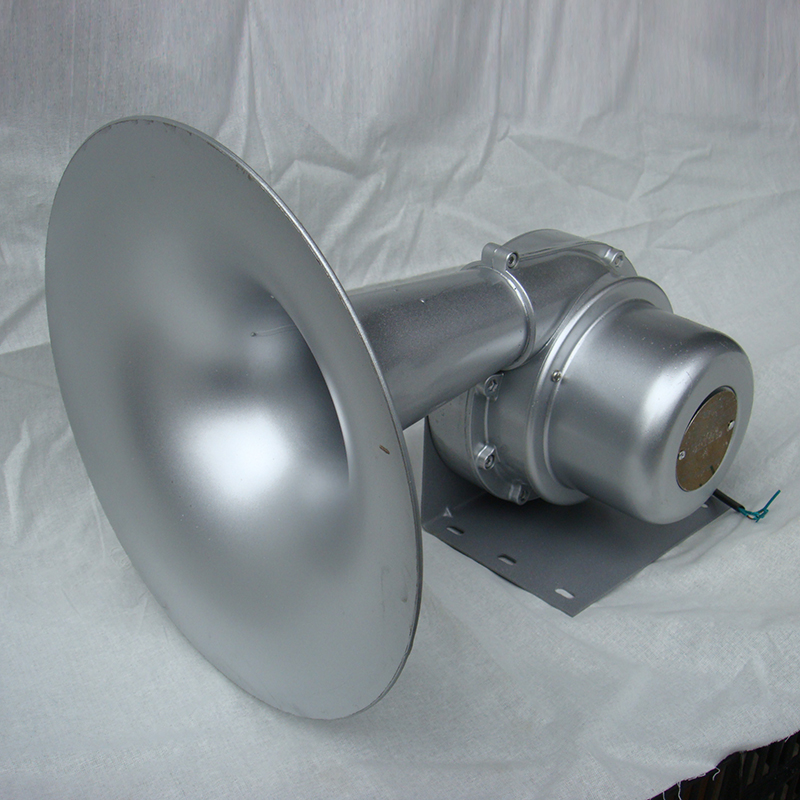

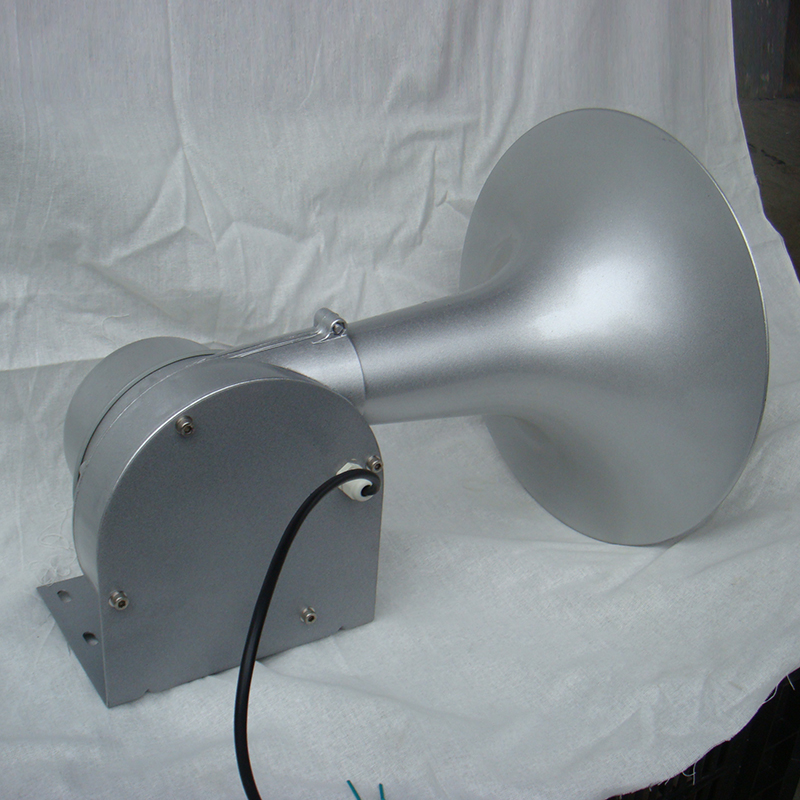

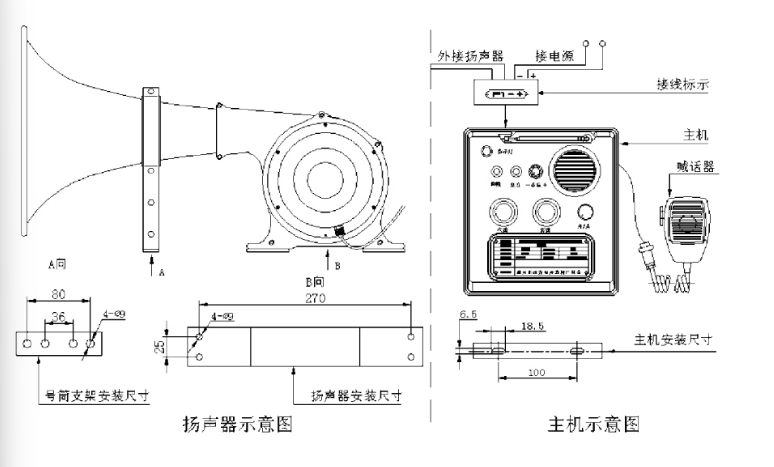

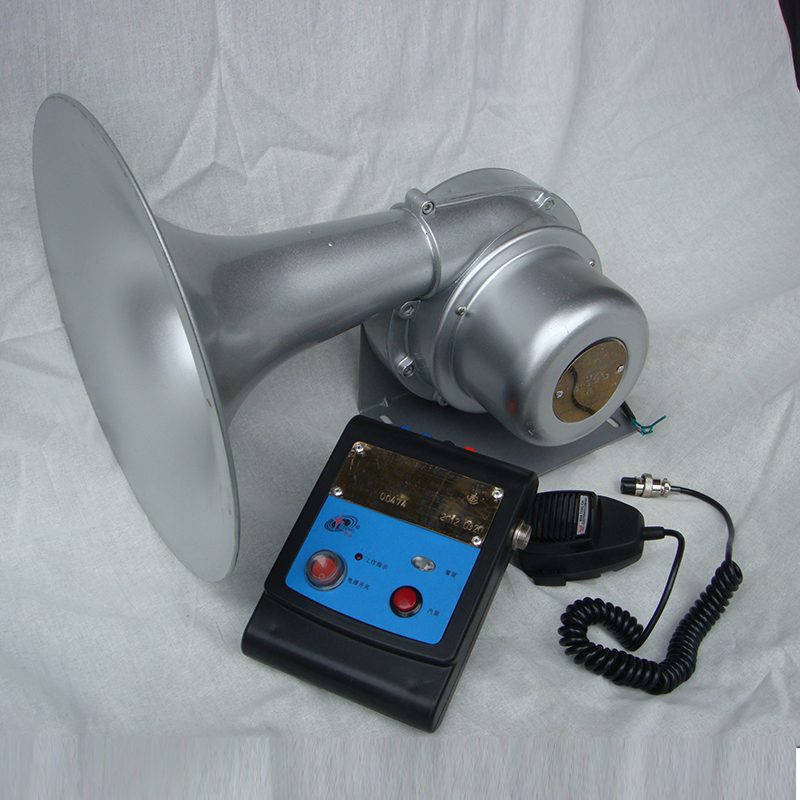

This product is divided into two parts: the speaker (horn) and the host (controller). The speaker is installed outdoors, and the host is installed indoors (control room). 1) Install the speaker outdoors, generally in a higher and more open location within the usage area. The front of the horn should not be obstructed by obstacles. 2) Install the host: The host of this product can be conveniently moved, but it is recommended that users install it fixedly to ensure its usage quality and service life. 3) Install the intercom: Insert the intercom into the intercom wiring port on the right side of the host.Note to tighten the nut when connecting the speaker to the host. Connect the two output wires of the speaker to the corresponding terminal of the host's 'Speaker' terminal via an extension cable. Polarity does not matter for the wiring. The intermediate extension cable part must be provided by the user. The cross-sectional area of the cable used should not be less than that of the speaker's output wire, and all connections must be secure and reliable. It is recommended to use marine cable for the intermediate connection. To connect the power supply, insert the fuse from the accessory into the host's '+' terminal, then connect the 24V DC power supply to the host. Note that the '-' terminal with the fuse should be connected to the negative pole of the power supply, and the '+' terminal should be connected to the positive pole. When installing, please follow the above steps and do not power on before installation to avoid serious accidents.
1. Rated Power: 300W
2. Impedance: 8Ω
3. Operating Voltage: DC 24V (±10%)
4. Frequency: 400Hz~700Hz
5. Total Harmonic Distortion: <5%
6. Sound Pressure Level: >131dB
7. Operating Temperature: -25°C~+55°C
Applications
Widely used in water transportation, piers and related places.
Certification
GB/T 12303-90
Competitive Advantage
Three functions: whistle, foghorn, and voice call. Note that only one function can be in operation at a time.
Customer case study
The product is widely used in major emergency rescue fields domestically and has received high praise from customers.
