| Availability: | |
|---|---|
| Quantity: | |
Place of Origin: | Malaysia/China |
Brand Name: | SSME |
Model Number: | SSME-XYQ-03 |
Certification： | CE |
Function: | Eyewash + Shower |
Standard: | ANSI Z358.1-2014 |
Working Pressure： | 0.2Mpa ~0.4Mpa |
Application: | Production Safety |
Main Matcrial: | Stainless steel, ABS; |
Printing | customerized Printing, OEM services |

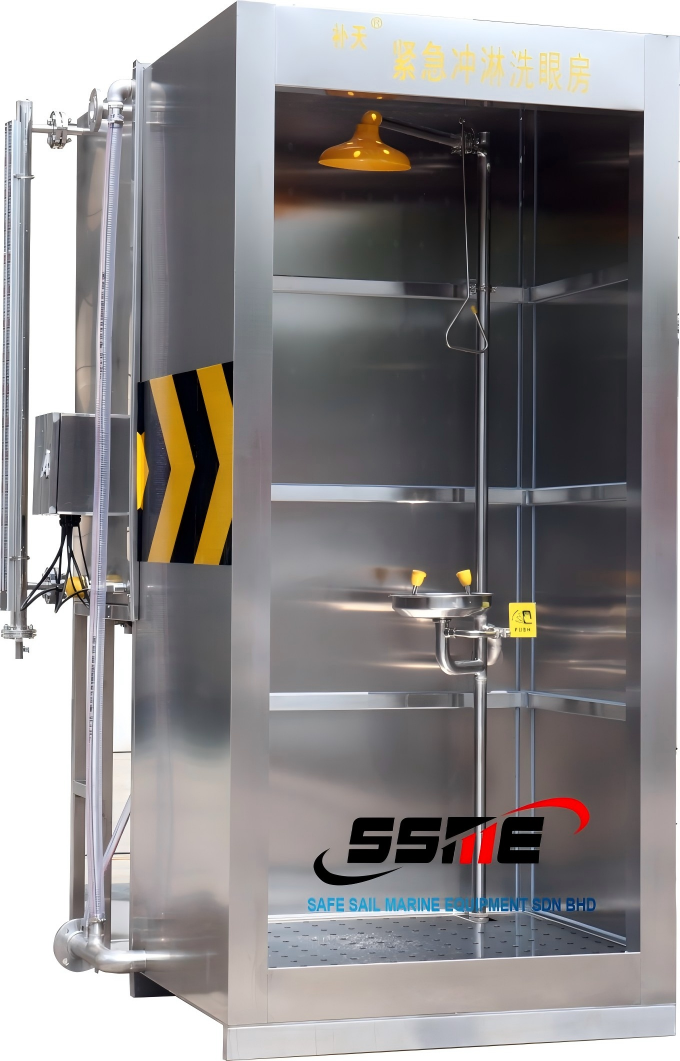

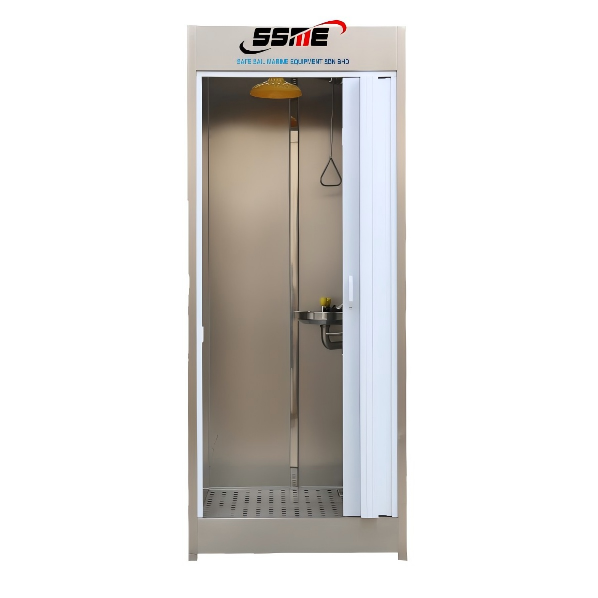

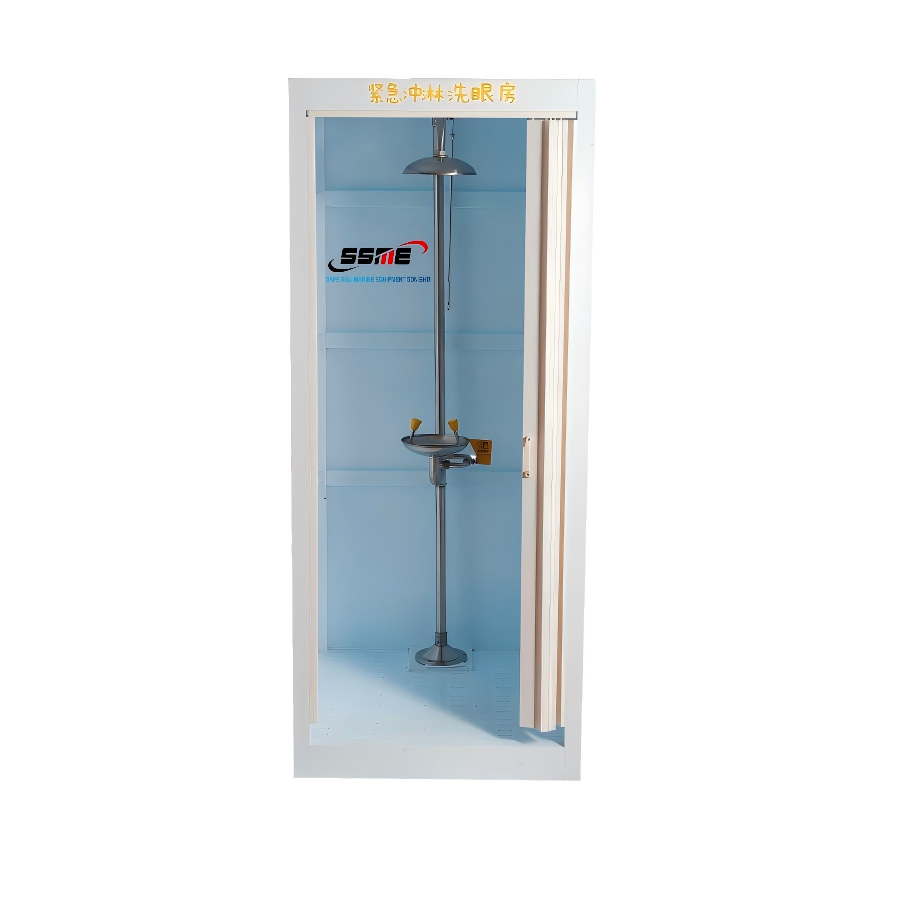

Production standard: American ANSI Z358.1-2014
Material of the shower room: SS304
Specification: Length 980mm * Width 1000mm * Height 2400mm (customizable according to user requirements)
Material: 1mm thick high-quality SS304 stainless steel plate
Function: Eye wash + shower
Nominal pressure: 1.0Mpa
Working pressure: 0.2 - 0.4Mpa
Height of eye wash nozzle: 1040mm
Height of shower pull rod: 1700mm
Height of shower nozzle: 2100mm
Eye wash flow rate: ≥ 11.4L/min
Shower flow rate: ≥ 75.7L/min
Inlet size: Rc 1-1/4 external thread, height 2500mm (customizable according to user requirements)
Outlet size: Rc 1-1/4 external thread, height 87mm
Medium used: Sanitary standard, normal temperature domestic water
Applications
It is widely applied in units, industries or fields such as nuclear energy, power stations, pharmaceuticals, medical care, chemical engineering, petroleum, shipping, electronics, metallurgy, dyeing and printing, education and scientific research.
Certification
CE Certificate
Competitive Advantage
(1) Special SS304 stainless steel that meets national standards. After pickling and passivation treatment, it has stronger resistance to acid, alkali, salt, and oil chemical substances than untreated SS304 stainless steel. All castings are made by silica sol casting process, without sand holes or gas holes and other defects. Compared with sand casting process, it has higher density and strength, and longer service life.
(2) The main pipe and the horizontal pipe of the shower, as well as the elbow between the horizontal pipe and the shower head, are made of seamless steel pipe elbow in one piece (patented: patent number ZL 2013 2 0407943.7), which greatly saves installation time and reduces the risk of leakage at the installation joint.
(3) It requires little operating force, making it easy for users to open quickly, and is more suitable for use in emergency situations. It has excellent wear resistance and sealing performance, with an effective service life of over 300,000 times. Maintenance is convenient, as the valve body does not need to be disassembled. The valve core can be directly replaced from the side of the switch, effectively reducing the maintenance cost for users.
(4) When in use, simply push the hand valve lightly, and clean water will automatically spray from the eye wash nozzle. The nozzle is equipped with a dust cover that can be automatically opened by the water flow when in use. After the eye wash switch is turned on, it will not close automatically without manual operation. Please turn off the switch and reset the dust cover after use.
(5) It adopts a heavy-duty two-piece switch. The water passage diameter is large, ensuring that the shower flow rate meets the standard. When in use, pull the shower lever downward to open the switch, and push it upward to close the switch. The shower switch handle is at 45 degrees upward for the closed state and 45 degrees downward for the open state.
(6) The eye wash nozzle is equipped with multiple layers of filters, effectively filtering impurities in the water and turning the water flow into a foamy water column, effectively preventing impurities in the water or excessive water flow from causing secondary injuries to the injured person's eyes and injured areas. The filters are easy to remove, clean, and maintain.
Customer case study
The products are sold far and wide to Southeast Asia, Europe, the Middle East, Latin America and other regions, and have received high praise from customers.
